Description
Jiangsu Liangyi is professional manufacturer of 1.3505,100Cr6 open die forging parts and seamless rolled steel forged rings from china

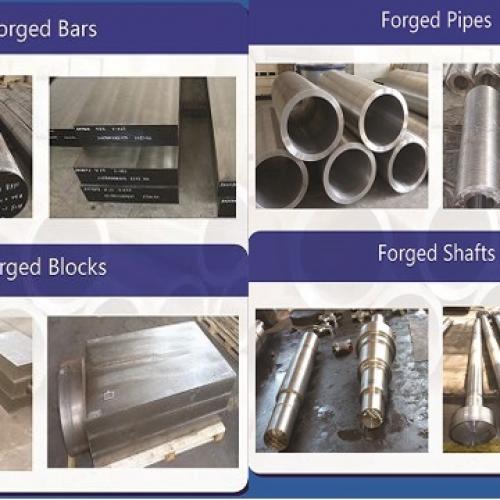

Following is the shape of 1.3505,100Cr6 forging steel material that we could do is:100Cr6 Forged Steel round bars square bars Flat bars Rectangles Bars Rods,100Cr6 Forged forging steel rings seamless rolled rings,1.3505 Forged Forging Steel Hubs housing shell Sleeves Bushes Bushing Cases Hollow Bars,1.3505 Forged Forging Steel Discs Disks Blocks plates,100Cr6 Forged Forging Steel Pipe Tubes Tubings Piping Shells Casings Case barrels Housings.
Following is forging products of 1.3505,100Cr6 material that is used in following industry
100Cr6 Forged Forging Valve Balls,valve Bonnets,valve Body Bodies ,valve Stems,valve closures, valve seat rings, valve core, valve discs
1.3505 Forged Bear rings
1.3505 Forging Forging Steel Rolls Roller, roll sleeves for rolling mills
1.3505 forging forged transmission shafts of electric locomotive
1.3505 forging forged cold forming dies and stamps, file cutters, wood and paper cutting knives, taps, scrapers
100Cr6 Forged Forging Steel PUMP Casing cover.PUMP BARREL,pump impeller,pump shafts, pump housing, pump shells,pump body,pump wear rings,pump case casing.
100Cr6 Forging Gear, gear shafts
100Cr6 forging steel cold work rolls
100Cr6 forged forming tools,Forming rolls
100Cr6 forging Fuel nozzles
1.3505 forging steel Shear blades
1.3505 forging steel Spindles
1.3505 is a construction steel of spheroidal bearing steel grades which exhibits high hardness, abrasion resistance and relatively easy mechanical treatment. 100Cr6 is used for the production of bearings and other pressure and friction-resistant components that do not operate at elevated temperatures, and the dimensions used are limited to approximately 30mm of thickness.
For melting 1.3505,100Cr6 forging steel material, we have following melting equipment
60 t Electric Arc Furnace (EAF) / Power 40 MVA
2 Ladle Furnace (LF)
2 Tank Degassing VD - VOD type
Pits for bottom pouring
ESR Plant (max weight 32 t)
FOllowing is chemical compostion of 100Cr6 forged steel rings
Iron (Fe) 97.1 to 98.3
Chromium (Cr) 1.4 to 1.6
Carbon (C) 0.93 to 1.1
Manganese (Mn) 0.25 to 0.45
Silicon (Si) 0.15 to 0.35
Copper (Cu) 0 to 0.3
Molybdenum (Mo) 0 to 0.1
Aluminum (Al) 0 to 0.050
Sulfur (S) 0 to 0.030
Phosphorus (P) 0 to 0.025
Oxygen (O) 0 to 0.0015
100Cr6 forged material Heat treatment way is as following
Annealing of 100Cr6 Alloy bearing steel
Slowly heated to 790-810 ℃ and allow enough times, let the steel to be thoroughly heated, Then cool slowly in the furnace. Different annealing ways will get different hardness.The 100Cr6 bearing steel will get Hardness MAX 248 HB （Brinell hardness）.
Quenching and temperature of 100Cr6 Alloy bearing steel
Heated slowly to 860°C, Then quenching by oil get 62 to 66 HRc hardness. High temperature tempering: 650-700℃，cool in air, get hardness 22 to 30HRC. Low temperature tempering: 150-170 ℃， Cool in ari, get 61-66HRC hardnes
Following of 100Cr6 forging parts heat treatment mechanical property Delivery condition :
Tensile strength after spheroidizing annealing - Rm = 570 - 720 MPa Tensile strength
after thermal treatment - Rm = 590 - 780 MPa
Hardness in annealed condition with a limited hardness < 235 HB
Hardness in spheroidized annealing condition 170 - 210 HB Hardness
in the heat-hardened state 170 - 230 HB
To assure these all our 1.3505,100Cr6 forging parts, we offer you different testing methods in following
Testing machines
Universal testing machine 400 KN
Pendulum machine 450 Joules
Pendulum machine 750 Joules
Testing scope
Room-temperature tensile test
Creep test
Warm tensile test up to 1000 C°
Notch impact test from -196 C°
Bending test
Compression test
Drop-weight test (Pellini)
Hardness test (Brinell, Rockwell, Vickers)
Metallographic Testing
Microstructure examination / microsection test with grain size determination
Fiber orientation
Melting test
Purity level
Intermetallic phase
Huey-Test
Corrosion tests (G28, G48, IK)
Segregation testing on etched slices
Simulated heat treatment
Up to 1280 C°
Spectrometer for chemical element analysis
Optic emission spectrometer
X-ray fluorescence spectrometer
All our finished 1.3505,100Cr6 forged shafts should have following inspection report
Chemical compositions(on the sampling area on part and on thesample ingot)
Mechanical properties(on the sampling area on part and on the sample ingot)Hardness curve to characterize the surface hardened area
Roughness measurement
Metallurgical analysis: structure, grain size, inclusion cleanliness
Records of the heat treatment
Non-destructive test reports
Welcome your inquiry of 1.3505,100Cr6 forging forged steel parts
