Description
Jiangsu Liangyi is professional manufacturer of 2.4889,NiCr28FeSiCe open die forging parts and seamless rolled steel forged rings from china

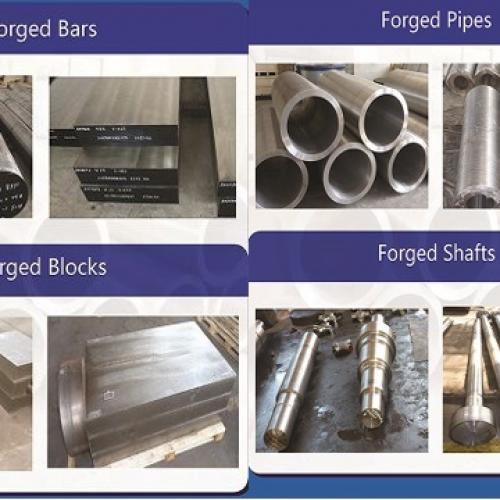

Following is the shape of 2.4889,NiCr28FeSiCe forging steel material that we could do is:2.4889 Forged Steel round bars square bars Flat bars Rectangles Bars Rods,NiCr28FeSiCe Forged forging steel rings seamless rolled rings,NiCr28FeSiCe Forged Forging Steel Hubs housing shell Sleeves Bushes Bushing Cases Hollow Bars,2.4889 Forged Forging Steel Discs Disks Blocks plates,2.4889 Forged Forging Steel Pipe Tubes Tubings Piping Shells Casings Case barrels Housings.
Following is forging products of 2.4889,NiCr28FeSiCe material that is used in following industry
2.4889 forged forging steel pipes tubes shells piping tubing barrels housing, tube sheets,baffle plates, nozzles, channel flanges for boiler, heat exchanger,pressure vessel,reactors, heaters
2.4889 Forged Forging Valve Balls,valve Bonnets,valve Body Bodies ,valve Stems,valve closures, valve seat rings, valve core, valve discs,for H type two way 2‐way one way back pressure valves, ball valve,check valve,gate valve
NiCr28FeSiCe Forged Forging Steel nuclear Power reactor coolant pumps Rotor Impellers
NiCr28FeSiCe Forged Forging Steel Butterfly Valve Main Shafts Spindles
NiCr28FeSiCe Forged Forging Swept branches outlets steel fittings swept saddles
NiCr28FeSiCe Forged Forging Steels Christmas Trees wellhead Spool Body Bodies cylinder
NiCr28FeSiCe Forged Forging venturi cone meter Body Bodies Blocks
2.4889 Forged Forging Steel gate valves Body Bodies bespoke flat bars
2.4889 forged steel Flowseal cryogenic High Performance BV Butterfly Valves HPBV shaft
2.4889 forging steel Oil measurement valve Spool Ultrasonic flow meter bodies Body
NiCr28FeSiCe Forged Forging Steel double studded adapter flange
NiCr28FeSiCe Forged Forgig Steel nuclear reactor coolant pump Casing Shells body bodis blocks,nuclear reactor coolant pumps containment seal chamber Rooms,nuclear reactor coolant pumps containment seal chamber Rooms
NiCr28FeSiCe Forged Forging Steel Forged Single Double Bossed boss Blanks FLANGED BOSSES
NiCr28FeSiCe Forged Forging Steel PUMP Casing cover.PUMP BARREL,pump impeller,pump shafts, pump housing, pump shells,pump body,pump wear rings,pump case casing.
NiCr28FeSiCe Forged Forging forge Steel transition Cone
2.4889 Forged Forging Steel Pressure Vessel Reactor Nozzles
2.4889 is chiefly used in high-temperature applications with extremely corrosive media, such as oil ash corrosion, incineration gases, sulfur dioxide, caustic solution corrosion.
2.4889 forged parts production shall be performed by using one of the following methods:
Electric arc welding process (remelting if necessary)
Induction furnace process vacuum melting (or remelting, if necessary – e.g. ESR
Argon-Oxygen Decarburization (AOD) method.
FOllowing is chemical compostion of NiCr28FeSiCe forged steel rings
Fe 21 - 25
Si 2.5 - 3 max
Mn max 1
Ni min 45
P max 0.02
S max 0.01
Cr 26 - 29
Ce 0.03 - 0.09
Cu max 0.3
Following of 2.4889 forging material heat treatment nechanical property Delivery condition :
Rm - Tensile strength (MPa) (+AT) 620-820
Rp0.2 0.2% proof strength (MPa) (+AT) 240
A - Min. elongation at fracture (%) (+AT) 35
Brinell hardness (HB): (+AT) 220
All our 2.4889 forging parts will have following testing procedure
Visual inspections – Direct and Indirect
Magnetic particle
Dye penetrant – Visible and Fluorescent
Ultra-sonic testing
Radiograph
Metallurgical Testing
Macro & micro
Grain size determination
Charpy Impact testing
V notch Charpy
Hardness testing including micro and
macro Vickers tests
Tensile testing
Microscope imaging
All documentation of finished 2.4889,NiCr28FeSiCe forging material inspection document must be written in English.
All results must be given in accordance with the Sl system.
All documentation shall be well readable without risk of incorrect interpretation.
Inspection certificate EN 10204-3.1,with heat analysis and results of all testing in accordance with 6 Delivery inspection.
Heat treatment certificate,with information on the temperature and soaking time. 2-3 Surplus test material shall be separated from the blank and stored by the supplier for a minimum of three month after accepted delivery.If the test material is to be delivered,this will be stated in the purchase order or in a separate message.
Welcome your inquiry of 2.4889,NiCr28FeSiCe forging forged steel parts
