Description
Jiangsu Liangyi is professional manufacturer of 20MnCr5,20 MnCr 5,1.7147 open die forging parts and seamless rolled steel forged rings from china

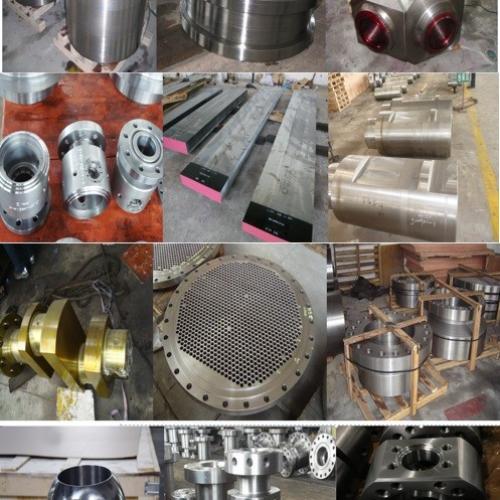

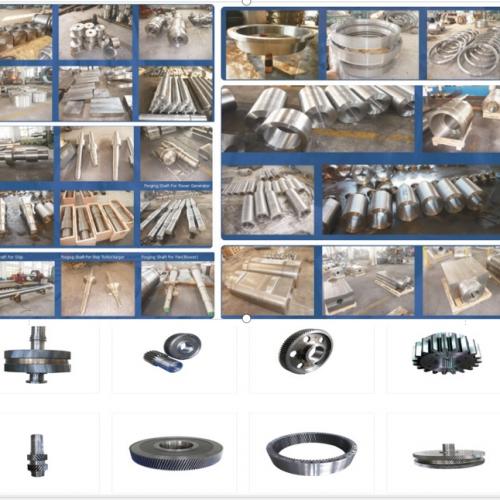

Following is the shape of 20MnCr5,20 MnCr 5,1.7147 forging steel material that we could do is:20MnCr5 Forged Steel round bars square bars Flat bars Rectangles Bars Rods,20MnCr5 Forged forging steel rings seamless rolled rings,1.7147 Forged Forging Steel Hubs housing shell Sleeves Bushes Bushing Cases Hollow Bars,20MnCr5 forging forged steel shafts,gear,pinion shafts,spindles,gear wheel,1.7147 Forged Forging Steel Discs Disks Blocks plates,20MnCr5 Forged Forging Steel Pipe Tubes Tubings Piping Shells Casings Case barrels Housings.
Following is forging products of 20MnCr5,20 MnCr 5,1.7147 material that is used in following industry
20MnCr5 Forged Forging Sugar Mill Gear shafts,pinion shafts,roller shafts,flanges coupling
20MnCr5 Cement Mill Rotary Kiln Forged Forging Steel case hardened ground Pinion Shafts
1.7147 Forging Forging Steel mill gear pinion shafts
20MnCr5 Forging wind turbine gearbox gear shafts,ring gears
1.7147 forging forged locomotive transmission shafts
20MnCr5 forging forged crane wheels
20MnCr5 hydro turbine shafts

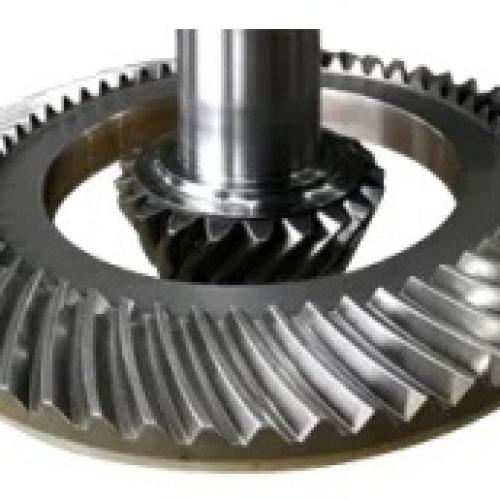

20MnCr5 Forging gearbox,gear reducer gear wheels, pinion shafts,ring gears,
20MnCr5 Forging crankshafts for gas compressor, mechanical presses,pump.
20MnCr5 forging steel Spindles
20MnCr5 Forging steel gear couplings
20MnCr5 Forged Forging Rolled Steel Granulators driers coaters coolers Riding Gear Rings
20MnCr5 Forged Forging Steel Cement Plant Pull Torque Rods
20MnCr5 Forged Forging Steel Crusher Shaft eccentric shafts,Mining Mine rock Gyratory crusher Eccentric shafts Spindles,Crusher Belt Pulley Wheels.
20MnCr5 Forged Forging Steel Mining Excavator Slewing Bearing Ball Races rings
20MnCr5 Forged Forging Steel Oil Drilling Tools Gear Shaft Pinion Shafts
20MnCr5 Forged Forging Steel helical gearing ground ship gearwheel Gear Wheels
20MnCr5 Forged Forging Steel Dragline Drag Line Power Shovel Cam Swing Shafts Shafting Spindles,dragline CENTRE PINTLE
20MnCr5 Forged Forging Steel Atomizer Shafts For Flue Gas Desulfurization scrubber Systems
20MnCr5 Forged Forging Steel drilling rigs Mud pump herringbone gear shafts pinion shafts
20MnCr5 Forging Forged Steel Thread Tie Rods
20MnCr5 Forged Forging Steel Electric Shovel Shaft Couplings
20MnCr5 Forged Forging Steel Granulator Gear Shafts
20MnCr5 Conveyor Pulley Forging Forged Steel Shafts factory
20MnCr5 Forged Forging Steel Hydraulic Honed Cylinders
20MnCr5 Forged Forging Steel Mine hoist systems Equipment Shaft Shafting Spindles
20MnCr5 Forged Forging Steel Rotary Dryer Trunnion Wheels
20MnCr5 Forged Forging Forge Steel Cold Mill Decoiler Coiler Mandrel Drum Shafts
20MnCr5 Forged Forging Steel bullgear Spider Gear Rims
20MnCr5 Forged Forging Shovel SWING Rimmed GEARING Gear DRUM GEAR,SWING PROPEL Pinion SHAFTS
20MnCr5 Forged Forging Steel Truck RING GEARS PLANET GEARS PINION SHAFTS
20MnCr5 Forging Forge Steel Offshore subsea anchor winches Stub Shafts Spindles
20MnCr5 Forged Forging Steel Seamless Hot rolled Truck concrete mixers semi-trailer bearings Rings
20MnCr5 Forged Forging Steel Subsea oil gas drilling equipments Box Riser Joint
20MnCr5 Forged Forging Railway locomotive Traction Motors end housings Rear End Shields
20MnCr5 Forged Forging Steels Christmas Trees wellhead Spool Body Bodies
20MnCr5 Forged Forging forge Steel Gas Steam turbine Power generator Shafts
20MnCr5 Forged Forging Steel Rotary Rock Drilling Tri-Cone Tricone Drill Bit cutter (PDC) Body Bodies factory
Forged Forging Steel Rotary Rock Drilling Tri-Cone Tricone Drill Bit cutter (PDC) Body Bodies
20MnCr5 is a case-hardening steel with low carbon content but good hardenability reaching good wear resistance due to high surface hardness after hardening. The small grain size benefits in good ductility and fatigue strength. Suitable for gearboxes and axle gears.
All our forged 20MnCr5 material is melted in ultra-high power electric arc furnaces and then refined using advanced ladle metallurgy. Vacuum degassing and vacuum oxygen decarburization (VOD) processes assure optimum steel cleanliness,ESR that depends on clients needs,
Chemical composition of 20MnCr5,20 MnCr 5,1.7147 forged parts
C 0.17 - 0.22
Si max 0.4
Mn 1.1 - 1.4
P max 0.025
S max 0.035
Cr 1 - 1.3
Following is heat treatment way of 20MnCr5,20 MnCr 5,1.7147 forging parts
Soft Annealing of 20MnCr5 steel
Heat to 650-700 oC.
Carburizing
Temperature 900-950 oC . Cooing from carburizing temperature: water, oil, air, thermal bath, cooling box.
Hardening
Core hardening 850 – 880 oC. Case hardening: 810 -840 oC. Quenching media: water, oil, air, thermal bath.
Tempering
Tempering temperature: 150-200 oC.
Forging
Hot Forming temperature: 1100-850 oC.
Rolling
Rolling temperature 1220 oC , Finishing Templerature > 900oC
Normalising
850-880 oC, air cool
Mechanical properties of the 20MnCr5 forged Raw Material
size in 11 tensile strength 1230-1570 yield strength 930 elongation 17.5 reduction 30 hardness 363-438HB
size in 30 tensile strength 930-1230 yield strength 690 elongation 8 - reduction 20 hardness 278-363HB
size in 63 tensile strength 780-1080 yield strength 540 elongation 9 - reduction 25 hardness 232-327HB
The following details shall be furnished in the test certificate of finished 20MnCr5 forged steel:
Heat No. , and melting type.
Dimensional inspection
Details of heat treatment cycle followed.
Results of chemical analysis including tramp elements.
Results of mechanical tests, including hardness test. All individual values shall be reported.Results of ultrasonic tests
Results of surface crack examination
Confirmation of the visual inspection
Confirmation of the verification inspection
Results of additional tests called for in the drawing/order
Welcome your inquiry of 20MnCr5,20 MnCr 5,1.7147 forging parts
