Description
Jiangsu Liangyi professional manufacturer of 1.4902, X14CrMoVNbN10-1, X14CrMoVNbN101 , X14CrMoVNbN10.1 open die forging parts and forged steel gas steam turbine generator rotor shafts factory from china
Inlet rings, shroud rings, retaining rings, seal rings, support rings, blade rings, outlet rings, casings and heat shields

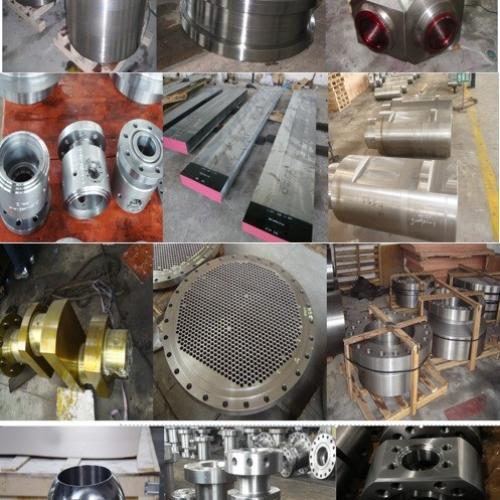

Following is the shape of 1.4902, X14CrMoVNbN10-1, X14CrMoVNbN101 , X14CrMoVNbN10.1 Forging steel material that we could do is:X14CrMoVNbN10-1 Forged Steel round bars square bars Flat bars Rectangles Bars Rods, X14CrMoVNbN10.1 Forged forging steel rings seamless rolled rings, X14CrMoVNbN10.1 Forged Forging Steel Hubs housing shell Sleeves Bushes Bushing Cases Hollow Bars, X14CrMoVNbN10.1 Forged Forging Steel Discs Disks Blocks plates, 1.4902 Forged Forging Steel Pipe Tubes Tubings Piping Shells Casings Case barrels Housings. X14CrMoVNbN10.1 Forged Forging Steel Gas Steam Turbine Rotors Shafts,X14CrMoVNbN10-1 Forged Forging Gas Compressor Turbine Blades turbine Vane steel Flat Rectangles Bars, X14CrMoVNbN101 Forged Forging Steel gas steam Turbine Guide Rings,shroud rings, Labyrinth Rings Packing Seal Diaphragm & Seal Ring Rotor End Rings contours Casing Rings,,support rings, blade rings, outlet rings,nozzle rings, diffuser rings X14CrMoVNbN10-1 Forged forging Gas Steam Turbine Valve Spindles/Stems/Rods,1.4902 Forging Forged Gas Steam Turbine Doubled-headed Double end Studs Fasteners Bolts
CHEMICAL COMPOSITION (WEIGHT %) of X14CrMoVNbN10.1 forged steam turbine rotor shafts as followings
Carbon (C)Aluminium 0.012 % max
Carbon 0.11 - 0.16 %
Chromium 10 - 11 %
Manganese 0.4 - 0.6 %
Molybdenum 1.4 - 1.6 %
Nickel 0.5 - 0.7 %
Niobium 0.04 - 0.06 %
Nitrogen 0.04 - 0.06 %
Phosphorus 0.02 %
Silicon 0.1 %
Sulfur 7E-3 %
Vanadium 0.15 - 0.25 %
0.25~0.35
Following is mechanical property properties of X14CrMoVNbN10-1 forging gas turbine parts in room temperature:
Elongation, transverse 20.0 °C 13 - 15 %
Reduction of area, transverse 20.0 °C 40 %
Tensile strength, transverse 20.0 °C 700 - 950 MPa
Yield strength Rp0.2 100.0 °C 555 - 695 MPa
Yield strength Rp0.2 200.0 °C 525 - 625 MPa
Yield strength Rp0.2 250.0 °C 515 - 610 MPa
Yield strength Rp0.2 300.0 °C 505 - 595 MPa
Yield strength Rp0.2 350.0 °C 495 - 575 MPa
Yield strength Rp0.2 400.0 °C 475 - 555 MPa
Yield strength Rp0.2 450.0 °C 445 - 525 MPa
Yield strength Rp0.2 500.0 °C 405 - 485 MPa
Yield strength Rp0.2 550.0 °C 345 - 425 MPa
Yield strength Rp0.2 600.0 °C 270 - 345 MPa
Yield strength Rp0.2, transverse 20.0 °C 600 - 700 MPa
A hardness test shall be performed on all X14CrMoVNbN10-1 forgings material
The mechanical properties are to be determined at one forging per melt and heat treatment batch.
In case of X14CrMoVNbN10.1 forged rings, the specimens (1 tensile specimen, 3 impact specimens) are to be taken out from tangential ring.
In case of X14CrMoVNbN10.1 forging discs and solid round bars material, the specimens have to be taken at a distance d/3 or a/3 and b/3 from the respective surfaces. In this case, transverse specimens are also allowed.
In case of other geometries,the specimens are to be taken out from prolongations of the X14CrMoVNbN10-1 forging.When different dimensions are produced within the same heat and heat treatment batch, the heaviest one shall be used for the determination of the mechanical properties. The tangential test ring or the sample for determination of the mechanical properties shall be cut from the forging after all heat treatment operations. If re- tempering is necessary, the test ring shall be placed by the X14CrMoVNbN10-1 forging.
The homogeneity of the microstructure has to be checked and documented by micro section. The microstructure must be uniform and free from porosity, excessive segregation and other inhomogeneities.
The inclusion content has to be determined in accordance with ASTM E 45.
The grain size of X14CrMoVNbN10.1 forging parts must be measured after all heat treatments have been performed in accordance with ASTM E 112 or ISO 643. Grain size 4 or finer must be achieved.
A deviation from the average grain size of more than 2 grain sizes is not permissible.
