Description
Jiangsu Liangyi is professional manufacturer of SNCM220,SNCM 220,SNCM 21 open die forging parts and seamless rolled steel forged rings from china
Following is the shape of SNCM220 forging steel material that we could do is:SNCM 220 Forged Steel round bars square bars Flat bars Rectangles Bars Rods,SNCM220,Forged forging steel rings seamless rolled rings,SNCM 220 Forged Forging Steel Hubs housing shell Sleeves Bushes Bushing Cases Hollow Bars,SNCM220 forging forged steel shafts,gear,pinion shafts,spindles,gear wheel,SNCM220 Forged Forging Steel Discs Disks Blocks plates,SNCM220 Forged Forging Steel Pipe Tubes Tubings Piping Shells Casings Case barrels Housings.
SNCM220 is defined as low carbon alloy steel which has 0.50 % Cr, 0.20 % Mo and 0.50 % Ni as strengthening alloyelements. It is generally used in widely used for a variety of applications in the used in the automotive and engineering industries for toolholders and other such components. Typical applications such as valve bodies, pumps and fittings, Shaft, the high load of wheel, bolts, double-headed bolts, gears, etc
Chemical composition of SNCM220 forging shafts is as following
Carbon 0.17 - 0.23 %
Chromium 0.4 - 0.65 %
Iron 96.81 - 98.13 %
Manganese 0.6 - 0.9 %
Molybdenum 0.15 - 0.3 %
Nickel 0.4 - 0.7 %
Phosphorus 0.03 %
Silicon 0.15 - 0.35 %
Sulfur 0.03 %
Sulphur 0.050
Following is heat treatment way of SNCM 220 SNCM220 forging material
Annealing: 850℃ Furnace Cooling
Normalization: 850~900℃ Air Cooling
Hardening: 850~880℃ 1ST Oil Cooling, 800~850℃ 2RD Oil Cooling
Tempering: 150~200℃ Air Cooling
Hardening: 860~900℃ 1ST Oil Cooling, 780~820℃ 2RD Oil Cooling
Tempering: 150~200℃ Air Cooling
We have following forging production equipment for all our SNCM220 forging steel parts
6 mobile hearth heating furnaces with a loading capacity of 10t up to 80t, equipped with a centralized automatic controlled system of the heating cycles;
a 6.300 tons semiautomatic hydraulic press;
a 3.500 tons semiautomatic hydraulic press;
a 70 tons capacity manipulator;
a 36 tons capacity manipulator;
a 24 tons capacity manipulator;
a 12 tons manipulator on rails.
The capacity of our a wide range of 1.4548 forging parts is in different shapes and sizes, weighing up to 35 tons.
We have following heat treatment equipment for all our SNCM220 forging material
21 gas furnaces with a loading capacity of 20t up to 80t and a max length of 16m;
1 electric furnaces with a max capacity of 20 tons;
2 130 and 200 m3 quenching tanks filled with water;
2 110 and 200 m3 quenching tanks filled with water and a polymer solution.
All furnaces are equipped with an automatic programming system controlled by a centralized computer with a heat treatment cycle recording system.
Quenching tanks are equipped with an automatic cooling system which keeps the liquid within the temperature requested.
For our finished production of SNCM220 forged steel bars should have following inspection report
Identification number, material number and designation, order number, drawing number,
Specification Number;
- Heat number, heat chemical analysis, melting method and product chemical analysis;
- Certificate of heat treatment including method of cooling, actual part temperature, holding
time, cooling condition and all re-heat-treatments by complete graphic temperature time;
- Nondestructive testing records,
- Results of all Mechanical Tests,
-Results of residual stress measurements (for process qualification),
- All probable deviation reports,
- Certification of NDT inspector,
- Dimensional and visual inspection report,
- Cleaning Verified

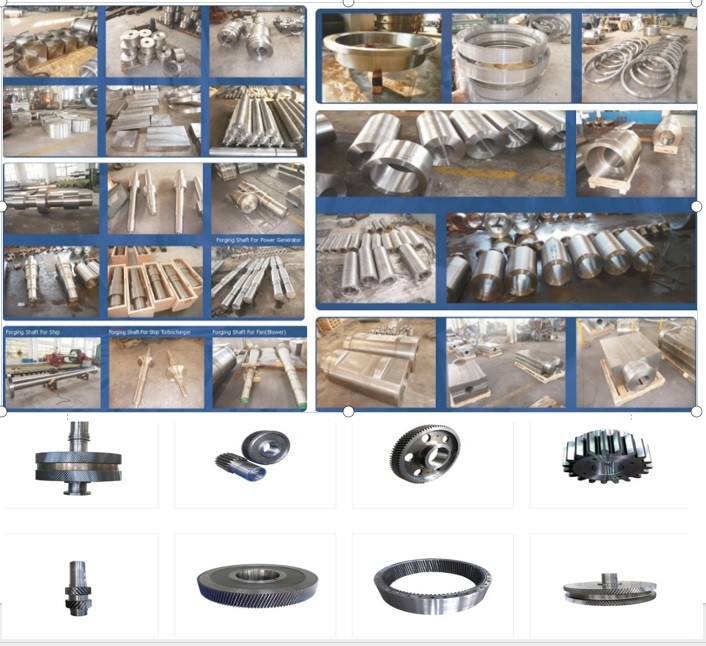

Following is forging products of SNCM220 material that is used in following industry
SNCM220 Forged Forging Sugar Mill Gear shafts,pinion shafts,roller shafts,flanges coupling
SNCM 220 Cement Mill Rotary Kiln Forged Forging Steel case hardened ground Pinion Shafts
SNCM 220 Forging Forging Steel mill gear pinion shafts
SNCM 220 Forging wind turbine gearbox gear shafts,ring gears
SNCM220 forging forged locomotive transmission shafts
SNCM 220 forging forged crane wheels
SNCM 220 hydro turbine shafts
SNCM220 Forging gearbox,gear reducer gear wheels, pinion shafts,ring gears,
SNCM 220 Forging crankshafts for gas compressor, mechanical presses,pump.
SNCM220 forging steel Spindles
SNCM220 Forging steel gear couplings
SNCM 220 Forged Forging Rolled Steel Granulators driers coaters coolers Riding Gear Rings
SNCM220 Forged Forging Steel Cement Plant Pull Torque Rods
SNCM220 Forged Forging Steel Crusher Shaft eccentric shafts,Mining Mine rock Gyratory crusher Eccentric shafts Spindles,Crusher Belt Pulley Wheels.
SNCM 220 Forged Forging Steel Mining Excavator Slewing Bearing Ball Races rings
SNCM 220 Forged Forging Steel Oil Drilling Tools Gear Shaft Pinion Shafts
SNCM 220 Forged Forging Steel helical gearing ground ship gearwheel Gear Wheels
SNCM 220 Forged Forging Steel Dragline Drag Line Power Shovel Cam Swing Shafts Shafting Spindles,dragline CENTRE PINTLE
SNCM 220 Forged Forging Steel Atomizer Shafts For Flue Gas Desulfurization scrubber Systems
SNCM 220 Forged Forging Steel drilling rigs Mud pump herringbone gear shafts pinion shafts
SNCM220 Forging Forged Steel Thread Tie Rods
SNCM220 Forged Forging Steel Electric Shovel Shaft Couplings
SNCM220 Forged Forging Steel Granulator Gear Shafts
SNCM220 Conveyor Pulley Forging Forged Steel Shafts factory
SNCM220 Forged Forging Steel Hydraulic Honed Cylinders
SNCM220 Forged Forging Steel Mine hoist systems Equipment Shaft Shafting Spindles
SNCM 220 Forged Forging Steel Rotary Dryer Trunnion Wheels
SNCM 220 Forged Forging Forge Steel Cold Mill Decoiler Coiler Mandrel Drum Shafts
SNCM220 Forged Forging Steel bullgear Spider Gear Rims
SNCM220 Forged Forging Shovel SWING Rimmed GEARING Gear DRUM GEAR,SWING PROPEL Pinion SHAFTS
SNCM220 Forged Forging Steel Truck RING GEARS PLANET GEARS PINION SHAFTS
SNCM220 Forging Forge Steel Offshore subsea anchor winches Stub Shafts Spindles
SNCM220 Forged Forging Steel Seamless Hot rolled Truck concrete mixers semi-trailer bearings Rings
SNCM220 Forged Forging Steel Subsea oil gas drilling equipments Box Riser Joint
SNCM220 Forged Forging Railway locomotive Traction Motors end housings Rear End Shields
Welcome your inquiry of SNCM220,SNCM 220,SNCM 21 forging parts
