Description
Jiangsu Liangyi is professional manufacturer of AISI 4150, SAE 4150,UNS G41500 open die forging parts and seamless rolled steel forged rings from china

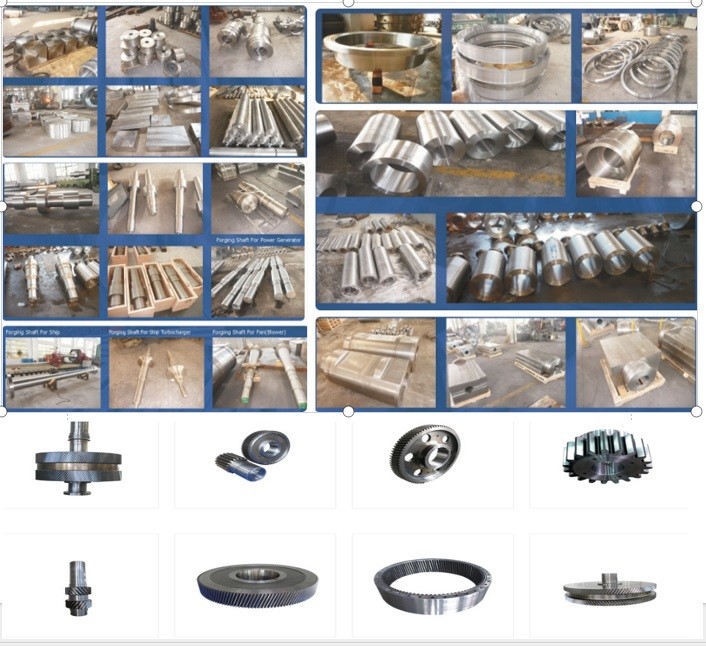

Following is the shape of AISI 4150, SAE 4150,UNS G41500 forging steel material that we could do is:AISI 4150 Forged Steel round bars square bars Flat bars Rectangles Bars Rods,AISI 4150 Forged forging steel rings seamless rolled rings,SAE 4150 Forged Forging Steel Hubs housing shell Sleeves Bushes Bushing Cases Hollow Bars,AISI 4150 forging forged steel shafts,gear,pinion shafts,spindles,gear wheel,SAE 4150 Forged Forging Steel Discs Disks Blocks plates,AISI 4150 Forged Forging Steel Pipe Tubes Tubings Piping Shells Casings Case barrels Housings.
Following is forging products of AISI 4150, SAE 4150,UNS G41500 material that is used in following industry
AISI 4150 Forged Forging Sugar Mill Gear shafts,pinion shafts,roller shafts,flanges coupling
AISI 4150 Cement Mill Rotary Kiln Forged Forging Steel case hardened ground Pinion Shafts
SAE 4150 Forging Forging Steel mill gear pinion shafts
AISI 4150 Forging wind turbine gearbox gear shafts,ring gears
SAE 4150 forging forged locomotive transmission shafts
AISI 4150 forging forged crane wheels
AISI 4150 hydro turbine shafts
AISI 4150 Forging gearbox,gear reducer gear wheels, pinion shafts,ring gears,
AISI 4150 Forging crankshafts for gas compressor, mechanical presses,pump.
AISI 4150 forging steel Spindles
UNS G41500 Forging steel gear couplings
AISI 4150 Forged Forging Rolled Steel Granulators driers coaters coolers Riding Gear Rings
AISI 4150 Forged Forging Steel Cement Plant Pull Torque Rods
AISI 4150 Forged Forging Steel Crusher Shaft eccentric shafts,Mining Mine rock Gyratory crusher Eccentric shafts Spindles,Crusher Belt Pulley Wheels.
UNS G41500 Forged Forging Steel Mining Excavator Slewing Bearing Ball Races rings
AISI 4150 Forged Forging Steel Oil Drilling Tools Gear Shaft Pinion Shafts
AISI 4150 Forged Forging Steel helical gearing ground ship gearwheel Gear Wheels
AISI 4150 Forged Forging Steel Dragline Drag Line Power Shovel Cam Swing Shafts Shafting Spindles,dragline CENTRE PINTLE
AISI 4150 Forged Forging Steel Atomizer Shafts For Flue Gas Desulfurization scrubber Systems
AISI 4150 Forged Forging Steel drilling rigs Mud pump herringbone gear shafts pinion shafts
AISI 4150 Forging Forged Steel Thread Tie Rods
AISI 4150 Forged Forging Steel Electric Shovel Shaft Couplings
AISI 4150 Forged Forging Steel Granulator Gear Shafts
AISI 4150 Conveyor Pulley Forging Forged Steel Shafts factory
AISI 4150 Forged Forging Steel Hydraulic Honed Cylinders
UNS G41500 Forged Forging Steel Mine hoist systems Equipment Shaft Shafting Spindles
AISI 4150 Forged Forging Steel Rotary Dryer Trunnion Wheels
AISI 4150 Forged Forging Forge Steel Cold Mill Decoiler Coiler Mandrel Drum Shafts
AISI 4150 Forged Forging Steel bullgear Spider Gear Rims
UNS G41500 Forged Forging Shovel SWING Rimmed GEARING Gear DRUM GEAR,SWING PROPEL Pinion SHAFTS
AISI 4150 Forged Forging Steel Truck RING GEARS PLANET GEARS PINION SHAFTS
AISI 4150 Forging Forge Steel Offshore subsea anchor winches Stub Shafts Spindles
UNS G41500 Forged Forging Steel Seamless Hot rolled Truck concrete mixers semi-trailer bearings Rings
AISI 4150 Forged Forging Steel Subsea oil gas drilling equipments Box Riser Joint
AISI 4150 Forged Forging Railway locomotive Traction Motors end housings Rear End Shields
AISI 4150 Forged Forging Steels Christmas Trees wellhead Spool Body Bodies
AISI 4150 Forged Forging forge Steel Gas Steam turbine Power generator Shafts
AISI 4150 Forged Forging Steel Rotary Rock Drilling Tri-Cone Tricone Drill Bit cutter (PDC) Body Bodies factory
Forged Forging Steel Rotary Rock Drilling Tri-Cone Tricone Drill Bit cutter (PDC) Body Bodies
AISI 4150 is is a steel alloy that contains carbon, chromium, and molybdenum to strengthen the material. Other elements such as: manganese, silicon, sulfur, and phosphorus complete the 4150 alloys. 4150 steel is known for its high tensile and yield strength, hardness, machinability, formability, and wear resistance
Steel making Process of AISI 4150 forging round bars
Electric arc furnace or blast furnace and oxygen blast converter shall be used, each with subsequent ladle treatment;
Steel shall be vacuum degassed;
Steel shall be non-radioactive;
Quality class shall beat least MQ in accordance with ISO 6336-5 or DIN 3990-5;
Standard EN 10083 shall be followed.
Chemical composition of UNS G41500 forged parts
Chemical analysis shall be made from a test sample taken just prior to the pouring or during pouring and shall conform to the chemical requirements in the following table:
Iron (Fe) 96.7 to 97.7
Chromium (Cr) 0.8 to 1.1
Manganese (Mn) 0.75 to 1.0
Carbon (C) 0.48 to 0.53
Silicon (Si) 0.15 to 0.35
Molybdenum (Mo) 0.15 to 0.25
Sulfur (S) 0 to 0.040
Phosphorus (P) 0 to 0.035
Mechanical properties of the AISI 4150 forged Raw Material
yield strength Mpa ≥900
tensile strength Mpa 1100-1300
elongation，% ≥10
reduction,% ≥40
charpy test ，J ≥30
hardness ，size≤ 16 HB331-380
Following is testing standard of AISI 4150 forged shafts
EN ISO 9000FF,EN 10002-1,ASTM E8M,ASTM E8,EN10045,EN10021,EN ISO 6506-1,ASTM E112,DIN 50602,DIN50601,ASTM E45,SEP 1923,EN 10204,ASTM A370,MUN 106.2/1.
The following result will be reported to clients along with the supply of AISI 4150 forged parts. On all the reports the heat number, forge serial number, order number and material designation shall be marked.
· Heat number and heat analysis including trace elements and melting process.
· Weight of ingot stating L/D ratio.
· Degree of forging reduction (Amax/Afinal at greatest body dia)
· Percentage of top and bottom discards.
· Heat treatment temperature actually measured, holding times, method of cooling and cooling conditions (cooling rates) including all reheat treatments are to be quoted as a complete temperature time sequence.
· Results of residual stress measurement if performed.
· Results of Ultrasonic examination giving details of probe type and size, frequency, sensitivity, sketch showing the areas covered etc.
· Results of Magnetic Particle Inspection.
· Hardness variation throughout the surface depicting the locations.
· Results of Metallographic test along with photo-micrographs.
Welcome your inquiry of AISI 4150, SAE 4150,UNS G41500 forging parts
