Description
Jiangsu Liangyi is professional manufacturer of Ferralium 255，UNS S32550，Super Duplex 50，ALLOY 255 open die forging parts and seamless rolled steel forged rings from china

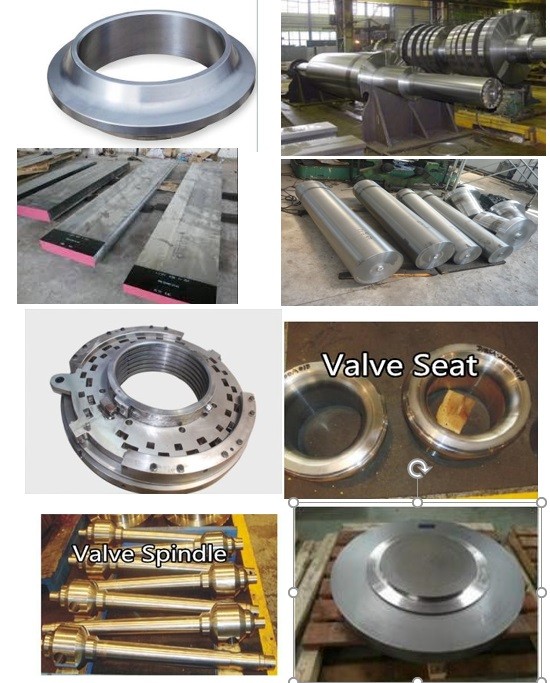

Following is the shape of Ferralium 255，UNS S32550，Super Duplex 50，ALLOY 255 forging steel material that we could do is: ALLOY 255 Forged Steel round bars square bars Flat bars Rectangles Bars Rods,Ferralium 255 Forged forging steel rings seamless rolled rings,UNS S32550 Forged Forging Steel Hubs housing shell Sleeves Bushes Bushing Cases Hollow Bars,UNS S32550 Forged Forging Steel Discs Disks Blocks plates,ALLOY 255 Forged Forging Steel Pipe Tubes Tubings Piping Shells Casings Case barrels Housings.
Following is forging products of Ferralium 255，UNS S32550，Super Duplex 50，ALLOY 255 material that is used in following industry
Ferralium 255 forging Forged Drilling Pipes Tubes Drill Rods drill Drilling collar
UNS S32550 Forged Forging Turbine and Compressor Labyrinth Shaft Seals
Ferralium 255 Forged/Forging Blow Out Blowout Preventer RAM Annular dual Bop Body Bodies Block
UNS S32550 Forged Forging drilling tools,risers,connectors,flexible joint ,seals,flanges gasket
Super Duplex 50 Forged Forging Valve Balls,valve Bonnets,valve Body Bodies ,valve Stems,valve closures, valve seat rings, valve core, valve discs,for H type two way 2‐way one way back pressure valves, ball valve,check valve,gate valve
UNS S32550 Forged Forging Steel nuclear Power
Grade 2205 Forged Forging Steel Butterfly Valve Main Shafts Spindles
UNS S32550 Forged Forging Swept branches outlets steel fittings swept saddles
ALLOY 255 Forged Forging downhole drilling tool Mud Motor Splined Drive shafts,Down hole Electric electrical submersible pumps ESP motor Splined Shaft
Ferralium 255 Forged Forging Steels Christmas Trees wellhead Spool Body Bodies cylinder
Grade 2205 Forged Forging venturi cone meter Body Bodies Blocks
UNS S32550 Forged Forging Steel gate valves Body Bodies bespoke flat bars
ALLOY 255 forged steel Flowseal cryogenic High Performance BV Butterfly Valves HPBV shaft
Super Duplex 50 forging steel Oil measurement valve Spool Ultrasonic flow meter bodies Body
Ferralium 255 Forged Forging Steel double studded adapter flange
Ferralium 255 Forged Forging Steel integral Mud Flange Flanged outlet Studded crosses
UNS S32550 Forged Forging Steel Casing Heads,Tubing Heads,Casing Hangers,Tubing Hangers,Tubing Spools,Casing Spools,Spacer Spools
Ferralium 255 Forged Forgig Steel nuclear reactor coolant pump Casing Shells body bodis blocks,nuclear reactor coolant pumps containment seal chamber Rooms,nuclear reactor coolant pumps containment seal chamber Rooms
Grade 2205 Forged Forging turbomachinery turbo centrifugal compressor Impeller,Compressor Shrouded Impellers
Duplex Stainless Steel 2205 Forged Forging Steel Forged Single Double Bossed boss Blanks FLANGED BOSSES
Ferralium 255 Forged Forging Steel PUMP Casing cover.PUMP BARREL,pump impeller,pump shafts, pump housing, pump shells,pump body,pump wear rings,pump case casing.
UNS S32550 Forged Forging forge Steel transition Cone
UNS S32550 Forged Forging Steel Pressure Vessel Reactor Nozzles
ALLOY 255 forged forging steel pipes tubes shells piping tubing barrels housing, tube sheets,baffle plates, nozzles, channel flanges for boiler, heat exchanger,pressure vessel,reactors, heaters
Ferralium 255 chieves higher strengths than most other stainless steel varieties and corrosion-resistant alloys. It is resistant to chloride SCC, as well as crevice corrosion and pitting.it is most used in applications in the chemical, marine, metallurgical, municipal sanitation, plastics, oil and gas, petrochemical, pollution control, wet phosphoric acid, paper making and metalworking industries.
The stainless steel UNS S32550 forged parts shall be melted by one of the following processes:electric furnace with separate degassing and refining optional or electric furnace followed by electroslag-consumable remelting.
UNS S32550 forged parts will be supplied to this specification that complies with the definitions given in ASTM A788.
Ferralium 255 forging material shall be sufficient to develop a wrought structure throughout the part.A forging ratio of 3:1 minimum shall be achieved.
FOllowing is chemical compostion of Ferralium 255,Grade 2205 forged steel rings
Fe Balance
Cr 24.5 26.5
Ni 5.50 6.50
Mo 3.10 3.80
Cu 1.50 2.00
C 0.025
Mn 0.80 1.20
N 0.20 0.25
Si 0.70
P 0.025
S 0.005
Following of Ferralium 255,Grade 2205 forging parts heat treatment nechanical property Delivery condition :
Tensile Strength MPa – 790
Yield Strength (0.2%Offset) MPa – 570-600
Elongation 25 %
For Every pieces of Ferralium 255,Grade 2205 forging round bars, we could do following testing Non destructive tests such as visual, dimensional, ultrasonic testing,dye penetrant testing , Magnetic particle test(MPl), the mirrostructure and technological tests such as tensile, resilience, creep tests, hardness,Metallographic exams,Chemical analysis
The following details shall be furnished in the test certificate of finished Ferralium 255,Grade 2205 forged steel:
Heat No. , and melting type.
Dimensional inspection
Details of heat treatment cycle followed.
Results of chemical analysis including tramp elements.
Results of mechanical tests, including hardness test. All individual values shall be reported.Results of ultrasonic tests
Results of surface crack examination
Confirmation of the visual inspection
Confirmation of the verification inspection
Results of additional tests called for in the drawing/order.
Welcome your inquiry of Ferralium 255，UNS S32550，Super Duplex 50，ALLOY 255 forging forged steel parts
