Description
Jiangsu Liangyi is professional manufacturer of Incoloy 890,UNS N08890,,Alloy 890,Incoloy ALloy 890 open die forging parts and seamless rolled steel forged rings from china

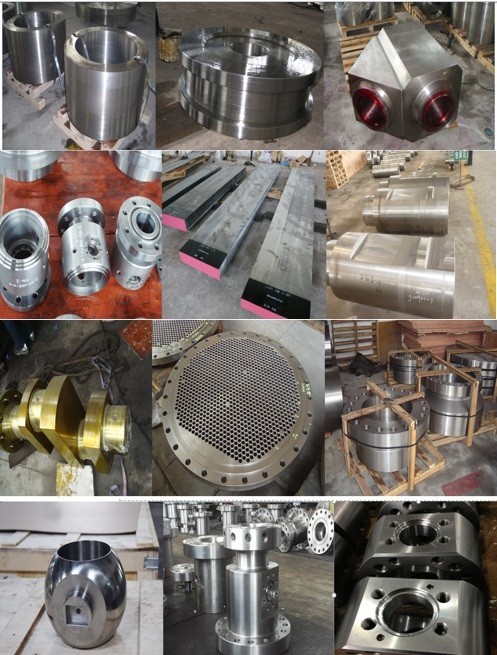

Following is the shape of Incoloy 890,Incoloy ALloy 890, Alloy 890,UNS N08890 forging steel material that we could do is:Incoloy 890 Forged Steel round bars square bars Flat bars Rectangles Bars Rods,Incoloy ALloy 890 Forged forging steel rings seamless rolled rings,Alloy 890 Forged Forging Steel Hubs housing shell Sleeves Bushes Bushing Cases Hollow Bars,UNS N08890 Forged Forging Steel Discs Disks Blocks plates,Incoloy 890 Forged Forging Steel Pipe Tubes Tubings Piping Shells Casings Case barrels Housings.
Incoloy 890 is offers high strength along with excellent resistance to oxidation, carburization, and sulfidation at temperatures up to 2200°F (1200°C).
Alloy 890 offers the high chromium content of alloy 803 along with enhanced properties from additions of silicon, molybdenum, and niobium.
FOllowing is chemical compostion of Incoloy ALloy 890 forged steel rings
Nickel...................................................................................42.5
Chromium ...............................................................................25
Iron .......................................................................................Bal.
Aluminum...............................................................................0.1
Niobium .................................................................................0.4
Titanium ...........................................................................1 max.
Carbon...................................................................................0.1
Manganese ......................................................................1 max.
Silicon ....................................................................................1.8
Phosphorus ................................................................0.03 max.
Sulfur ........................................................................0.015 max.
Copper........................................................................0.75 max.
Molybdenum..........................................................................1.5
Tantalum ................................................................................0.2
FOllowing is heat treat way of incoloy 890
Annealing alloy 890 is accomplished by heating to a temperature between 2050 and 2200°F (1121 and 1204°C),holding for a time commensurate with section thickness, followed by rapid cooling in air or water quenching.
Alloy 890 can be sensitized by carbide precipitation when exposed to intermediate temperatures for extended periods of time.
Following of Incoloy 890 forging material heat treatment nechanical property Delivery condition :
Properties Metric Imperial
Tensile strength 62 MPa 8990 psi
Yield strength 44 MPa 6380 psi
Elongation at break 46.50% 46.50%
The finished incoloy 890 forged round bars shall be straight, sound and free from internal and surface defects viz., cracks,piping, scabs, laps, hairline cracks, etc. The bars shall be free from twists and bends.
, The surface of the bars shall be smooth without any laps, rolled in scales, etc. Dents roll marks and scratches are permitted provided their depth does not exceed half the tolerance limits specified
In order to produce alloy 890 forged material, we have following forging equipment
A 3,500 ton forging press
A 1,200 ton forging press
A 800 ton forging press
5 manipulators
3 pneumatic hammers
2 drop hammers
10 furnaces
To assure these all our incoloy 890 forging parts, we offer you different testing methods in following
Testing machines
Universal testing machine 400 KN
Pendulum machine 450 Joules
Pendulum machine 750 Joules
Testing scope
Room-temperature tensile test
Creep test
Warm tensile test up to 1000 C°
Notch impact test from -196 C°
Bending test
Compression test
Drop-weight test (Pellini)
Hardness test (Brinell, Rockwell, Vickers)
Metallographic Testing
Microstructure examination / microsection test with grain size determination
Fiber orientation
Melting test
Purity level
Intermetallic phase
Huey-Test
Corrosion tests (G28, G48, IK)
Segregation testing on etched slices
Simulated heat treatment
Up to 1280 C°
Spectrometer for chemical element analysis
Optic emission spectrometer
X-ray fluorescence spectrometer
Welcome your inquiry of Incoloy 890,Incoloy ALloy 890, Alloy 890,UNS N08890) forging forged steel parts
