Description
Jiangsu Liangyi is professional manufacturer of 1.6932,28NiCrMoV8-5,28NiCrMoV85,28NiCrMoV8.5 open die forging parts and seamless rolled steel forged rings from china

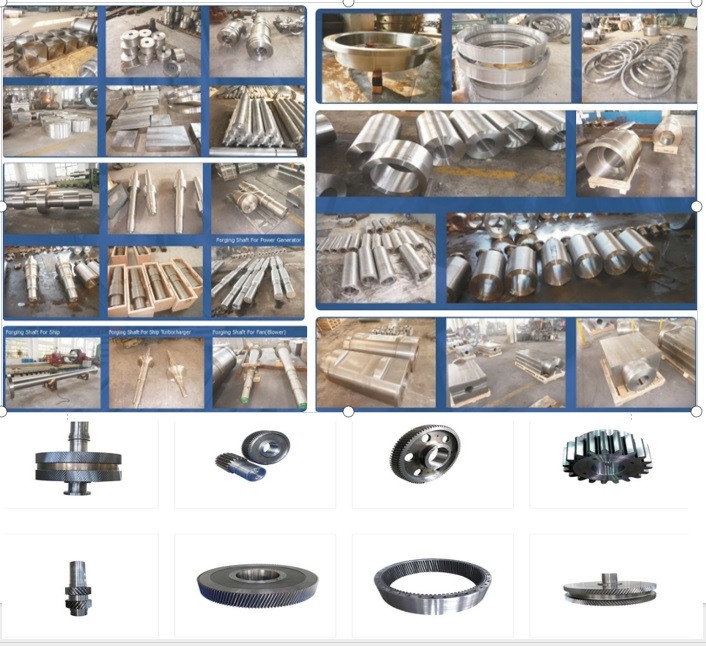

Following is the shape of 1.6932,28NiCrMoV8-5,28NiCrMoV85,28NiCrMoV8.5 forging steel material that we could do is:1.6932 Forged Steel round bars square bars Flat bars Rectangles Bars Rods,28NiCrMoV85 Forged forging steel rings seamless rolled rings,1.6932 Forged Forging Steel Hubs housing shell Sleeves Bushes Bushing Cases Hollow Bars,1.6932 Forged Forging Steel Discs Disks Blocks plates,AISI 415 Forged Forging Steel Pipe Tubes Tubings Piping Shells Casings Case barrels Housings.
1.6932 can be used as a universal quenched and tempered steel in many applications. There is the advantage in high toughness (in deep temperatures also) together increased strength properties. It gets these great properties by Vanadium alloyed modification. The largest amounts of these steel grades are used in Mechanical Engineering (high-strength structures) and is widely used in the oil and gas sector.
1.6932 forged material l is manufactured via Electric Arc Furnace, followed by Ladle Refining and Vacuum Degassing and is either cast into bottom-poured wide end up ingots, or Continually Cast.
CHEMISTRY of 28NiCrMoV8-5 Forged Material
Iron (Fe) 94.5 to 96.4
Nickel (Ni) 1.8 to 2.1
Chromium (Cr) 1.0 to 1.5
Molybdenum (Mo) 0.35 to 0.55
Carbon (C) 0.24 to 0.32
Manganese (Mn) 0.15 to 0.4
Silicon (Si) 0 to 0.4
Vanadium (V) 0.050 to 0.15
Phosphorus (P) 0 to 0.035
Sulfur (S) 0 to 0.035
Mechanical properties of steel 28NiCrMoV8-5 (1.6932) forged parts
Hardness: 270-310 HBW
0,2 %-Yield strength: >690 MPa
Tensile Strength: > 865 MPa
Reduction in area (longitudinal): min. 18 %
Impact test (ISO-V) trans: min. 60 J bei -40°C
Heat treatment of 28NiCrMoV8-5 (1.6932) forging bars
Furnaces surveyed and calibrated per AMS 2750.
Austenitised and liquid quenched.
Quenched & tempered to meet selected strength variant.
Supplied either stress free or stress relieved.
The Supplier will provide confirmation of the actual 28NiCrMoV8-5 (1.6932) forging material mechanical properties.
Material Inspection according to ASTM A370, ASTM E23, ASTM E4, ASTM E112
UT – 28NiCrMoV8-5 forged bar length to be 100% ultrasonically tested per ASTM A388, with acceptance criteria in accordance with API 6A PSL 3&4
Grain size ASTM 5 or finer.
Test Certificate according to EN10204 3.1 including following testing report
Necessary tests and procedures:
Tensile test
Chemical composition test
Impact test
Metallographic test
Transversal/longitudinal ultrasonic inspection
Visual and dimensional inspection
Following is forging products of 1.6932,28NiCrMoV8-5,28NiCrMoV85,28NiCrMoV8.5 material that is used in following industry
28NiCrMoV8.5 Forged Forging Steel Mining Mine raise boring machine drill stabilizer /drilling pipe /drill rod/stem bar
28NiCrMoV8.5 Forged Forging Steel Drill Collars/Drilling Pipes
28NiCrMoV8.5 Forged Forging Stabilized Roller Reamers Body Bodies
28NiCrMoV8-5 Forged forging steel Actuactor rings Well casing Swivel rings riser flanges rings
28NiCrMoV8-5 Forged Forging Steel Raiseboring Raise boring machine Stems
28NiCrMoV85 Forged forging steel Actuactor rings Well casing Swivel rings riser flanges rings
1.6932 Forging gearbox,gear reducer gear wheels, pinion shafts,ring gears,Gear shafts.
1.6932 forged mud pump, frac pump pinion shafts, bull gears,gear shafts, gear wheels
1.6932 Forging Steel Jackup Pinion shafts
1.6932 Forged Forged Pumps suction side sealing jacket seal chambers jacket casings
28NiCrMoV85 Forged Forging Swivel Ring Flanges
1.6932 Forging/Forged Forge Steel Wye Piece/Piggable Wyes
28NiCrMoV85 Forged Forging Steel double studded adapter flange
28NiCrMoV85 Raiseboring Raise boring machine output spares Float Boxes Spindle Bolts Clamping Rings Range Bodies Spindle Hubs Wrench
1.6932 Forged Forging Valve Balls,valve Bonnets,valve Body Bodies ,valve Stems,valve closures, valve seat rings, valve core, valve discs,for H type two way 2‐way one way back pressure valves, ball valve,check valve,gate pump
1.6932 Forged Forging Steel nuclear Power reactor coolant pumps Rotor Impellers
28NiCrMoV85 Forged Forging downhole drilling tool Mud Motor Splined Drive shafts,Down hole Electric electrical submersible pumps ESP motor Splined Shaft
28NiCrMoV8-5 MOD Forged Forging Steels Christmas Trees wellhead Spool Body Bodies cylinder
1.6932 Forged Forging Block Adaptor
1.6932 Forged Forging venturi cone meter Body Bodies Blocks
1.6932 Forged Forging Steel frac pumps Fluid End Body Bodies Blocks Modules
28NiCrMoV8-5 MOD Forged Forging Steel gate valves Body Bodies bespoke flat bars
1.6932 Forged Forging Steel drill head casings,collars,landing bowls
28NiCrMoV85 forging steel Oil measurement valve Spool Ultrasonic flow meter bodies Body
1.6932 Forged Forging Steel Subsea X Tree high pressure elbow
28NiCrMoV8-5 MOD forged forging Steel wellhead locknut Venturi Bench
1.6932 Forged Forging Steel double studded adapter flange
1.6932 Forged Forging Steel integral Mud Flange Flanged outlet Studded crosses
28NiCrMoV85 Forged Forging Steel Casing Heads,Tubing Heads,Casing Hangers,Tubing Hangers,Tubing Spools,Casing Spools,Spacer Spools
28NiCrMoV8-5 MOD forging Forging/Forged Steel Wellhead Christmas Tree Frac Head (Fracturing Head)
1.6932 Forged Forging Steel Forged Single Double Bossed boss Blanks FLANGED BOSSES
1.6932 Forged Forging Steel PUMP Casing cover.PUMP BARREL,pump impeller,pump shafts, pump housing, pump shells,pump body,pump wear rings
1.6932 Forged Forging forge Steel transition Cone
28NiCrMoV85 Forged Forging Blowout Preventer RAM Annular dual Bops Body Bodies Block
Welcome your inquiry of 28NiCrMoV8-5 forged parts
