Description
Jiangsu Liangyi is professional manufacturer of AMS 5660,AMS 5661 open die forging parts and seamless rolled steel forged rings from china

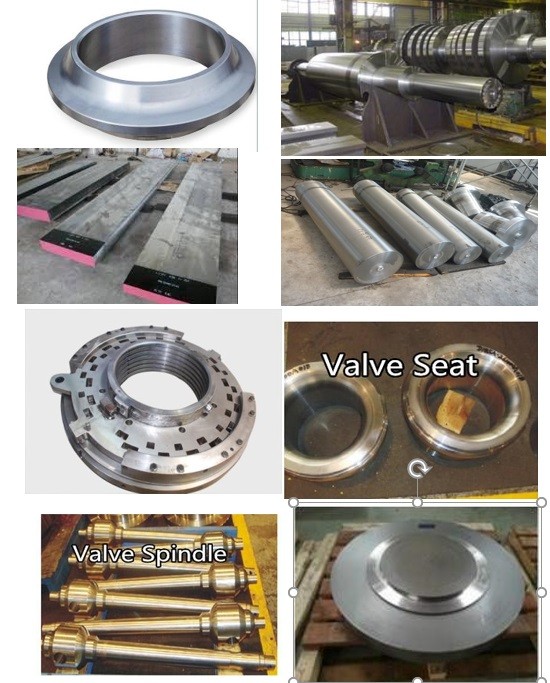

Following is the shape of AMS 5660,AMS 5661 forging steel material that we could do is:AMS 5660,AMS 5661 Forged Steel round bars square bars Flat bars Rectangles Bars Rods,Nimonic AMS 5660,AMS 5661 Forged forging steel rings seamless rolled rings,AMS 5660,AMS 5661 Forged Forging Steel Hubs housing shell Sleeves Bushes Bushing Cases Hollow Bars,AMS 5660,AMS 5661 Forged Forging Steel Discs Disks Blocks plates,AMS 5660,AMS 5661 Forged Forging Steel Pipe Tubes Tubings Piping Shells Casings Case barrels Housings.
Following is forging products of AMS 5660,AMS 5661 material that is used in following industry
AMS 5660,AMS 5661 Forged Forging Gas Compressor Turbine Blades steel Flat Rectangles Bars
AMS 5660,AMS 5661 Forged Forging Gas steam turbine disks, turbine impeller,turbine blisk,turbine discs
AMS 5660,AMS 5661 Forging Steel Forging Forged Gas Steam Turbine Doubled-headed Double end Studs Fasteners Bolts bolting
AMS 5660,AMS 5661 Forging Steel gas steam Turbine Guide Rings,seal rings Labyrinth Rings Packing Seal Diaphragm & Seal Ring Rotor End Rings contours Casing Rings
AMS 5660,AMS 5661 Forged Forging Steel Gas Steam turbine diaphragm diapharagm nozzles
AMS 5660,AMS 5661 Forged Forging Gas Turbine LPT 1st & 2st 2nd Stg Stage Turbine Case Casings
AMS 5660,AMS 5661 Forged Forging Steel power plant steam turbine control reheat valve disc Disk
AMS 5660,AMS 5661 Forged forging Gas Steam Turbine Valve Spindles/Stems/Rods,
AMS 5660,AMS 5661 Forging Steel Gas Steam Turbine MSV/GV/CV/CRV Valve Seats, Valve Cores, Valve Sleeves Spools,,Main Steam Valve Covers Bonnets Sleeves
AMS 5660,AMS 5661 forged material for nuclear power such as :Flow limiter Venturi forgings (steam generator)，Forged tubes for pressurizer surge line，reactor nozzles and primary pump fly wheels， divider plates for steam generator，Latch housings, rod travel housings and funnel extension,end ring and rotor stack plate forgings,bearing housings and stator end cap and closure ring forgings,Containment plates, rings and closure heads,Waste Flasks and Mounting Skirt,RPV Upper Shell and HSG Shell,Shell Strakes and Transition Cones,Pressure Components,Lifting Pin Tools and Trunnions,Pressuriser Upper Head and Upper Shell,Steam Drumhead and Lifting Pintles
AMS 5660,AMS 5661 is an age-hardenable super alloy which contains Titanium and Aluminium for precipitation hardening and molybdenum for soild-solution strengthening. AMS 5660,AMS 5661 has high yield strength and creep resistance at temperatures to about 1110°F (600°C). As AMS 5660,AMS 5661 has a substantial iron content it enables AMS 5660,AMS 5661 to combine strength with good forging characteristics. AMS 5660,AMS 5661 is commonly used for gas turbine engine discs, shafts, rings, casings and seals.
The AMS 5660,AMS 5661 forged material shall undergo the following heat treatment:
Solution Treatment: 1975-2025°F / 2 hrs + Air Cool
Stabilization Heat Treatment: 1425 - 1475°F / 2-4 hrs + Air Cool
Precipitation Heat Treatment: 1325 - 1375 / 24 hrs +Any Cool
The forgings AMS 5660,AMS 5661 forged parts shall be free from defects such as cracks, flakes, seams, segregation, non-metallic inclusionsand other defects which may affect the utility of the forgings.
Chemical composition of AMS 5660,AMS 5661 forging turbine parts is as
Element Content (%)
Nickel, Ni 41-43 .5
Chromium, Cr 11-14
Titanium, Ti 2.2-2.75
Silicon, Si 1 max
Manganese, Mn 0.8 max
Copper, Cu 0.5 max
Aluminum, Al 0.35 max
Carbon, C 0.1 max
Phosphorus, P 0.04 max
Sulfur, S 0.04 max
Boron, B 0.01 – 0.02
Iron, Fe Remainder
mechanical property of for AMS 5660,AMS 5661 forged round bars is as follow
Tensile strength MIN 1180MPA
Yield strength MIN 835
Elongation at Break MIN 15
.
We have following Forging Equipments of make forging of AMS 5660,AMS 5661 forging steel parts, 4500t &850000t Hydraulic forging equipments; 50t&15t Manipulators; 2t&1t&450kg air hammer; 5t electro hydraulic hammer etc.
We have Heat treatment Equipments of make forged of AMS 5660,AMS 5661 forging turbine parts:φ2*12m pit furnace; φ8*3*3m table resistor furnace; 1.5*0.8*1.5m box resistor furnace; 8*3*3m gas furnace; 6*3*2m gas furnace; 7.5*4*2.5 gas furnace;16*2.5*2.5 gas furnace etc.
We have following inspection equipment to inspect of all our AMS 5660,AMS 5661 forging steel gas steam turbine parts
a well equipped chemical lab which carries out test analysis on the steel heats made in the steel mill
a well equipped lab which carries out mechanical tensile & resilience tests as well as creep tests
a metallurgic lab for structural macro-micro and inclusion micro metallurgic examinations, according to ISO 17025
non destructive UT/MP/LP tests carried out by experienced and qualified SNT-TA-1A operators
fixed and portable Brinell/3000/10 hardness check equipment
dedicated and certified equipment for dimensional controls.
Welcome your inquiry of AMS 5660,AMS 5661 forging parts
