Description
Jiangsu Liangyi is professional manufacturer of Haynes Alloy 230, Haynes 230, Alloy 230,UNS N06230 open die forging parts and seamless rolled steel forged rings from china

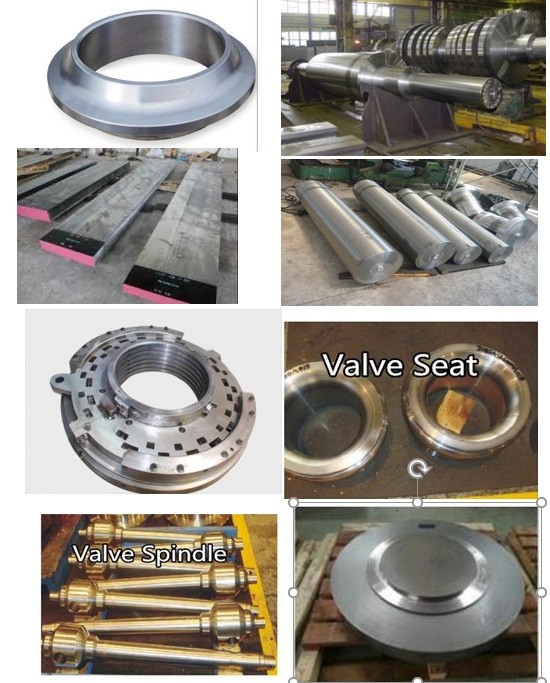

Following is the shape of Haynes Alloy 230, Haynes 230, Alloy 230,UNS N06230,Haynes230 forging steel material that we could do is:Haynes 230 Forged Steel round bars square bars Flat bars Rectangles Bars Rods,Haynes Alloy 230 Forged forging steel rings seamless rolled rings,Haynes 230 Forged Forging Steel Hubs housing shell Sleeves Bushes Bushing Cases Hollow Bars,UNS N06230 Forged Forging Steel Discs Disks Blocks plates,Alloy 230 Forged Forging Steel Pipe Tubes Tubings Piping Shells Casings Case barrels Housings.
Following is forging products of Haynes Alloy 230, Haynes 230, Alloy 230,UNS N06230,Haynes230 material that is used in following industry
Haynes Alloy 230 Forged Forging Gas Compressor Turbine Blades steel Flat Rectangles Bars
Haynes 230 Forged Forging Gas steam turbine disks, turbine impeller,turbine blisk,turbine discs
Alloy 230 Forging Steel Forging Forged Gas Steam Turbine Doubled-headed Double end Studs Fasteners Bolts bolting
UNS N06230 Forging Steel gas steam Turbine Guide Rings,seal rings Labyrinth Rings Packing Seal Diaphragm & Seal Ring Rotor End Rings contours Casing Rings
Haynes 230 Forged Forging Rolled Gas Steam Turbine Inner Outer Heat Shields
Alloy 230 Forged Forging Rolled Steel Gas Steam Turbine shrouds
Haynes 230 forging forged steel tube sheets, baffle plates, nozzles,flanges for heat exchanger
Haynes 230 material for furnace retorts, chains and fixtures, burner flame shrouds, recuperator internals, dampers, nitriding furnace internals, heat-treating baskets, grates, trays, sparger tubes, thermocouple protection tubes, cyclone internals
Alloy 230 Forged Forging Steel Gas Steam turbine diaphragm diapharagm nozzles
Haynes 230 forged forging hot working dies,tooling, die blocks,mould, mold.
Haynes 230 Forged Forging Gas Turbine LPT 1st & 2st 2nd Stg Stage Turbine Case Casings
Haynes 230 Forged Forging Steel power plant steam turbine control reheat valve disc Disk
Alloy 230 Forged forging Gas Steam Turbine Valve Spindles/Stems/Rods,
Alloy 230 Forging Steel Gas Steam Turbine MSV/GV/CV/CRV Valve Seats, Valve Cores, Valve Sleeves Spools,,Main Steam Valve Covers Bonnets Sleeves
Haynes Alloy 230 is is a nickel-chromium-tungsten-molybdenum alloy that combines excellent high-temperature strength, outstanding resistance to oxidizing environments up to 2100°F (1149°C) for prolonged exposures, premier resistance to nitriding environments, and excellent long-term thermal stability. It is readily fabricated and formed, and is castable. Other attractive features include lower thermal expansion characteristics than most high-temperature alloys, and a pronounced resistance to grain coarsening with prolonged exposure to hightemperatures.
Forgings Haynes 230 maeterial shall be manufactured from steel produced by vacuum induction melting 1 electro-slag re-melting {VIM/ESR) or by vacuum induction melting 1 vacuum are re-melting (VIM/VAR) process.
The hot working shall be done in such a way that a uniform fine grained microstructure is achieved.
The Haynes 230 forged material shall undergo the following heat treatment:
Solution Treatment - 1080 °C (1975 °F) for 8 hours + air cool or oil/ water quench
Precipitation Heat Treatment (As per BS HR2) - 700 °C (12230 °F) for 16 hours + air cool
FOllowing is production standard of Haynes 230 forging material
AMS 5891, ASTM-B-572, ASME-SB-572, EMS 55474(CHEM), PWA-1127D,GE B50TF246
Chemical composition of Haynes Alloy 230, Haynes 230, Alloy 230,UNS N06230,Haynes230 forging turbine parts is as
Nickel: 47.00-65.00
Iron: 3.00 max
Chromium: 20.00 - 24.00
Cobalt: 5.00 max
Molybdenum: 1.00 - 3.00
Tungsten: 13.00 - 15.00
Carbon: 0.05-0.15
Manganese: 0.30-1.00
Silicon: 0.25-0.75
Aluminum: 0.20-0.50
Lanthanum: 0.005-0.05
Phosphorus: 0.03 max
Sulfur: 0.015 max
Boron: 0.015 max
Titanium: 0.10 max
Copper: 0.50 max
Following is heat treatment methods of Haynes 230 forging rings
furnished in the solution heat treated condition, unless otherwise specified. The alloy is solution heat-treated in the range of 2150 to 2275°F (1177 to 1246°C) and rapidly cooled or water-quenched for optimum properties.
mechanical property of for Haynes Alloy 230, Haynes 230, Alloy 230,UNS N06230,Haynes230 forged round bars is as follow
Ultimate Tensile Strength: 110 KSI min (760 MPa min)
Yield Strength (0.2% offset): 45 KSI min (31 O MPa min)
Elongation: 40% min
.
All our forged Haynes Alloy 230, Haynes 230, Alloy 230,UNS N06230,Haynes230 forged gas turbine parts can be release en10204-3.1 certificate, or en10204-3.2 inspection certificate from following third party,3.2 mit TUV ,GL BV,DNV,ABS ,Lloyds Register of Shipping, RMRS ,RINA and so on
The following details shall be furnished in the test certificate of finished Haynes 230 forged steel:
Heat No. , and melting type.
Dimensional inspection
Details of heat treatment cycle followed.
Results of chemical analysis including tramp elements.
Results of mechanical tests, including hardness test. All individual values shall be reported.Results of ultrasonic tests
Results of surface crack examination
Confirmation of the visual inspection
Confirmation of the verification inspection
Results of additional tests called for in the drawing/order.
Welcome your inquiry of Haynes Alloy 230, Haynes 230, Alloy 230,UNS N06230,Haynes230 forging parts
