Description
We are professional Forging Steel WYE Pieces, Forged Steel Piggable Wyes manufacturer from china

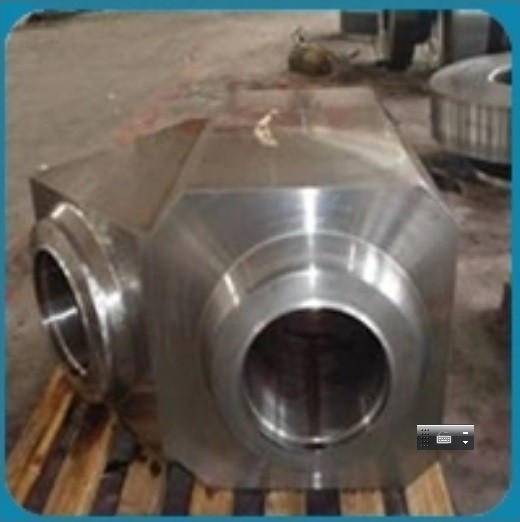

Forged steel Subsea Innovations Piggable Wye is a “Y”shaped pipeline fitting designed to facilitate the pigging and cleaning of lateral subsea pipeline systems which tie-in to major transmission lines.
The wye is a flow combiner for subsea pipeline tieins with two inlets which flow out the single exhaust end of the wye. The finished machined product consist of two piping inlets, each configured at an
angle of 15 degrees from the centerline of the fitting for a 30 degree included angle of entry between the two inlets.
Following is material grade of forging steel Piggable Wyes that we could supply:
Forged Piggable Wyes in Alloy and carbon steel grades:
A182-F5,A182-F11,A182-F12,A182-F21,A182-F22,ASTM A182-F22V,A182-F91,A182-F92,ASTM A694-F42,ASTM A694-F46,ASTM A694-F48,ASTM A694-F50,ASTM A694-F60,ASTM A694-F70,ASME Sa516 grade 60,Sa516-Grade 70,SA-350 LF2,SA-350 LF3,SA-350 LF5,SA-350 LF6,A36, ASTM A105, ASME SA266 Grade 2/Grade 4,ST37.2,C22.8,S235JR,S275JR, S355JR,,12CrMo9-10,18CrMos4,18CrNiMo7-6,17CrNiMo6,16MnCr5,St52-3,S355j2g3,
Forging Piggable Wyes in Stainless Steel Grades
A182-F6a,A182-F6b,A182-F304,A182-F304L,A182-F310,A182-F316,A182-F316L,A182-F317,A182-F317L,A182-F347,AISI 309,AISI 310s,AISI 316Lmod,A182-F48,A182-F321,A182-F347,A182-F348,Nitronic 50,Nitronic 40,Nitronic 60,Nitronic 30,Xm-11,Xm-10,UNS S21800,Alloy 20, 904L,PH13-8Mo,17-4ph,15-5ph,17-7ph,Ph15-7 Mo,254Smo, Al-6Xn,654SMO, A182-F44,A182-F45,A182-F51,A182-F53,A182-F60,A182-F55,A182-F62,A182-F52,ASTM A182-F61,UNS N08028.UNS N08367,
Forged Piggable Wyes in Nickel alloy and Super ALloy Forging Steel Grades
Nickel 200, Nickel 201,Monel 400,Monel R-405,Monel K-500,Hastelloy C-22,Hastelloy X,Hastelloy C-4,Hastelloy B-2,Hastelloy C-276,Hastelloy C-2000,Hastelloy B, Nimonic 75,Nimonic 90,Nimonic 80A,Nimonic 105,Nimonic 901,Inconel 600,inconel 601,inconel 617, inconel 625,inconel 686,inconel 690,inconel 693,inconel 718, inconel 725,inconel X-750,incoloy 800,incoloy 800H,incoloy 800HT,Incoloy 825,Incoloy 926,Incoloy 925,Incoloy 901
We could forged, heat treatment and final machined Forged Piggable Wyes as per clients drawing
All our Forged Piggable Wyes can be release in 10204-3.2 certificate by following third party DNV-GL BUREAU VERITAS,LLOYD’S REGISTER,ABS, RINA,TÜV
All our Forged Piggable Wyes will have following testing procedure
Visual inspections – Direct and Indirect
Magnetic particle
Dye penetrant – Visible and Fluorescent
Ultra-sonic testing
Radiograph
Metallurgical Testing
Macro & micro
Grain size determination
Charpy Impact testing
V notch Charpy
Hardness testing including micro and
macro Vickers tests
Tensile testing
Microscope imaging
size inspection
