Description
Jiangsu Liangyi is professional manufacturer of 1.4125,X105CrMo17, X 105 CrMo 17 open die forging parts and seamless rolled steel forged rings from china

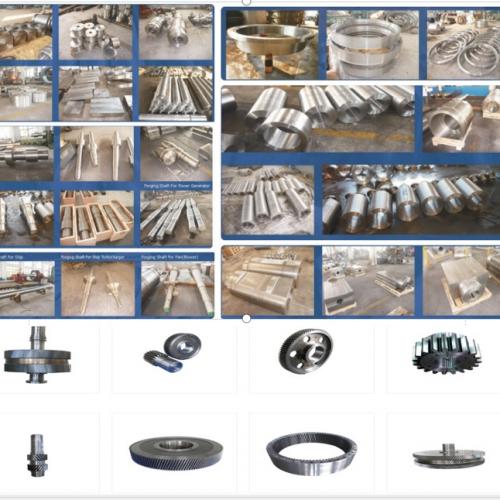

Following is the shape of 1.4125,X105CrMo17, X 105 CrMo 17 forging steel material that we could do is:1.4125 Forged Steel round bars square bars Flat bars Rectangles Bars Rods,1.4125 Forged forging steel rings seamless rolled rings,X105CrMo17 Forged Forging Steel Hubs housing shell Sleeves Bushes Bushing Cases Hollow Bars,X105CrMo17 Forged Forging Steel Discs Disks Blocks plates,1.4125 Forged Forging Steel Pipe Tubes Tubings Piping Shells Casings Case barrels Housings.
Following is forging products of 1.4125,X105CrMo17, X 105 CrMo 17 material that is used in following industry
1.4125 Forged Forging Valve Balls,valve Bonnets,valve Body Bodies ,valve Stems,valve closures, valve seat rings, valve core, valve discs
1.4125 Forged Bear rings
X105CrMo17 Forging Forging Steel Rolls Roller, roll sleeves for rolling mills
1.4125 Forging Mould,Dies,mold
X105CrMo17 forging forged transmission shafts of electric locomotive
1.4125 forging forged cold forming dies and stamps, file cutters, wood and paper cutting knives, taps, scrapers
1.4125 Forged Forging Steel PUMP Casing cover.PUMP BARREL,pump impeller,pump shafts, pump housing, pump shells,pump body,pump wear rings,pump case casing.
1.4125 Forging steam turbine blade,impeller,discs,disks, rotors,turbine seal rings,
1.4125 Forging Gear, gear shafts
X105CrMo17 forging Fuel nozzles
X105CrMo17 forging steel Shear blades
1.4125 forging steel Spindles
X105CrMo17 has a really good capability of getting hardness and it can be hardened up to 57 - 60 HRC. It containes ~%1.05 carbon element and because of high carbon, this grade is a bit brittle and high carbon effects the corrosion resistance as well. 440C materials used in surgical equipments, drills, knifes, valves, bearings. I
Following is production standard of 1.4125 forged material
EN 10088-3: 2005 Stainless steels. Technical delivery conditions for semi-finished products, bars, rods, wire, sections and bright products of corrosion resisting steels for general purposes
EN 10088-1: 2005 Stainless steels. List of stainless steels
For melting 1.4125 forging steel, we have following melting equipment
60 t Electric Arc Furnace (EAF) / Power 40 MVA
2 Ladle Furnace (LF)
2 Tank Degassing VD - VOD type
Pits for bottom pouring
ESR Plant (max weight 32 t)
FOllowing is chemical compostion of 1.4125 forged steel rings
Carbon (C) 0.95 - 1.20
Chromium (Cr) 16.00 - 18.00
Manganese (Mn) 0.0 - 1.00
Silicon (Si) 0.0 - 1.00
Phosphorous (P) 0.0 - 0.04
Sulphur (S) 0.0 - 0.03
Molybdenum (Mo) 0.40 - 0.80
Iron (Fe) Balance
Following is heat treatment way of 1.4125 forging round bars
softening annealing at a temperature of 780 - 840℃ with cooling in air or furnace Hardening at 1000 - 1050℃ with cooling in oil Tempering at a tempering of 100 - 300℃
We have following inspection equipment to inspection all our 1.4125,X105CrMo17 forging steel gas steam turbine rotor shafts
Tensile press
Charpy pendulum (up to – 90ºC)
Hardness testers
Scale
Thermometer
Spectrometer
Scales
Temperature control thermocouples
Continuous monitoring systems and process recording (heating, ring rolling and heat treatment)
Measuring laser
Pyrometer
Hardness testers
Laser measure
Comparators
Gauges
Micrometres
Bore gauges
UT equipment
MT equipment
Laser tracker
Fluorescent particles for liquid penetrant inspection
Radius gauges
Threaded plugs
Parallelism measuring devices
Roughness testers
Thickness gauges
Gauge blocks and rods
Light meters
Mass weight
Goniometers
Welcome your inquiry of 1.4125,X105CrMo17 forging parts
