Description
Jiangsu Liangyi is professional manufacturer of 42CrMoS4,1.7227 open die forging parts and seamless rolled steel forged rings from china

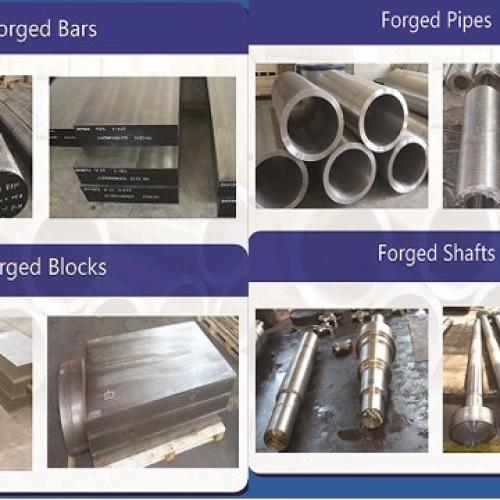

Following is the shape of 42CrMoS4,1.7227 forging steel material that we could do is:42CrMoS4 Forged Steel round bars square bars Flat bars Rectangles Bars Rods,42CrMoS4 Forged forging steel rings seamless rolled rings,1.7227 Forged Forging Steel Hubs housing shell Sleeves Bushes Bushing Cases Hollow Bars,42CrMoS4 forging forged steel shafts,gear,pinion shafts,spindles,gear wheel,1.7227 Forged Forging Steel Discs Disks Blocks plates,42CrMoS4 Forged Forging Steel Pipe Tubes Tubings Piping Shells Casings Case barrels Housings.
42CrMoS4 is steel for quenching and tempering, which has a good combination of strength and toughness in the quenched and tempered condition. After the oil quenching, the steel will be through hardened up to ø60 mm bar diameter. The microstructure of larger dimensions is not fully martensite. The steel is applicable to induction hardening. The surface hardness will exceed min. 53 HRC. 42CrMoS4 can be delivered M-treated in order to optimize the machinability
FOllowing is production standard of 42CrMoS4 forged parts
EN 10277-5: 2008 Bright steel products. Technical delivery conditions. Steels for quenching and tempering
EN 10083-3: 2006 Steels for quenching and tempering. Technical delivery conditions for alloy steels
EN 10263-4: 2001 Steel rod, bars and wire for cold heading and cold extrusion. Technical delivery conditions for steels for quenching and tempering
MELTING PRACTICES of 42CrMoS4 forged parts
The steel shall be melted in accordance with one of the supplemental requirements listed in the section below. The melting practice shall be per Section unless specified by other supplemental requirement.
SUPPLEMENTAL MELTING PRACTICE: The following supplemental melting practices apply to this specification if referenced by the appropriate supplemental number in the table at the end of this specification.
The steel shall be melted by basic oxygen (BOF) or basic electric furnaces (EF). Steel melted in acid furnaces shall not be permitted for the manufacturing of this material. Material processed by vacuum induction melting (VIM) or which receives additional processing by vacuum degassing (VD), argon-oxygen decarburization (AOD), vacuum oxygen decarburization (VOD), electroslag remelting (ESR) or vacuum arc remelting (VAR) shall also be acceptable. The steel shall be fully killed and melted to a fine grain practice.
The steel shall be melted by electric furnace (EF) with subsequent vacuum degassing (VD), argon-oxygen ecarburization (AOD), vacuum oxygen decarburization (VOD), or may be melted by vacuum induction melting (VIM). At the producer soption , additional processing by vacuum arc remelting VAR) or electroslag remelting (ESR) may also be used.
Sulfide shape control by calcium or rare earth injection may also be used.
The melt practice shall be reported on the Certified Test Report.
The minimum forging reduction ratio of 42CrMoS4 forged bars shall be 4:1, where the forging reduction ratio is defined as the product the area reduction ratio(s) for each hot working operation performed
Chemical composition of 42CrMoS4 forged parts
C 0.38 - 0.45
Si max 0.4
Mn 0.6 - 0.9
P max 0.025
S 0.02 - 0.04
Cr 0.9 - 1.2
Mo 0.15 - 0.3
FOllowing is heat treatment way of 42CrMoS4 forged rings
Normalizing: 850 – 880°C,Cooling in air
Soft Annealing:680 – 720°C,Cooling in furnace
Stress relieve:450-650°C,Cooling in air
Hardening:820 – 880°C,oil or water quench
Tempering:540 – 680°C,Cooling in air
Surface Hardness heat treatment of 42CrMoS4 forged gear shafts
Treated to improve shearability (+S):Max 255HB
Soft annealed (+A):Max 241HB
Pre Quenched and tempered:280-320HB
Flame or induction hardening:Min 53HRC
Mechanical properties of the 42CrMoS4 forged Raw Material
Tensile Strength Mpa ≤ 16 diameter 1100-1300 16-40MM diameter 1000-1200,40-100MM diameter 900-1100,100-160MM diameter 800-950,160-250MM diameter 750-900
Elongation, % ≥10≤ 16 diameter≥11 16-40MM diameter 40-100MM diameter ≥12 100-160MM diameter ≥13 160-250MM diameter≥14
Reduction of area ,% ≤ 16 diameter≥40 16-40MM diameter ≥45 40-100MM diameter ≥50 100-160MM diameter≥50 160-250MM diameter≥55
The following requirements of 42CrMoS4 forged parts are acceptance tests and shall be performed on each heat or lot as applicable.
Composition of each heat.
Hardness and average grain size of each lot of bars, forgings, and forged rings as solution heat treated.
Room-temperature tensile properties , hardness , and stress-rupture properties (of each lot of bars, forgings, and forged rings after precipitation heat
treatment.
Microstructure of each lot.
Periodic Tests: The following requirements are periodic tests and shall be performed at a frequency selected by the vendor unless frequency of testing is specified by purchaser:
Tensile Properties
hardness and stress-rupture properties of 1.7227 forged parts after resolution and precipitation heat treatment
Grain flow of 1.7227 forgings
Following is forging products of 42CrMoS4,1.7227 material that is used in following industry

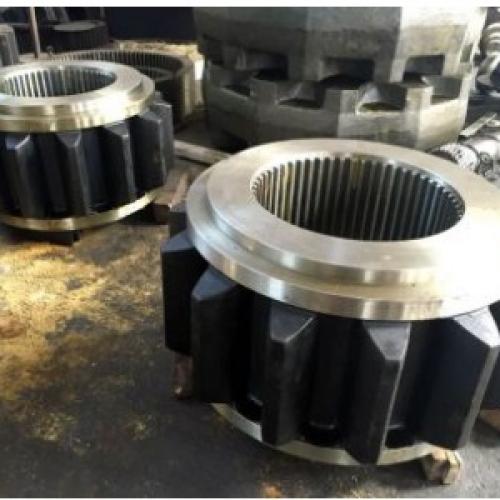

42CrMoS4 Forged Forging Sugar Mill Gear shafts,pinion shafts,roller shafts,flanges coupling
42CrMoS4 Cement Mill Rotary Kiln Forged Forging Steel case hardened ground Pinion Shafts
1.7227 Forging Forging Steel mill gear pinion shafts
42CrMoS4 Forging wind turbine gearbox gear shafts,ring gears
1.7227 forging forged locomotive transmission shafts
42CrMoS4 forging forged crane wheels
42CrMoS4 hydro turbine shafts
42CrMoS4 Forging gearbox,gear reducer gear wheels, pinion shafts,ring gears,
42CrMoS4 Forging crankshafts for gas compressor, mechanical presses,pump.
42CrMoS4 forging steel Spindles
42CrMoS4 Forging steel gear couplings
42CrMoS4 Forged Forging Rolled Steel Granulators driers coaters coolers Riding Gear Rings
42CrMoS4 Forged Forging Steel Cement Plant Pull Torque Rods

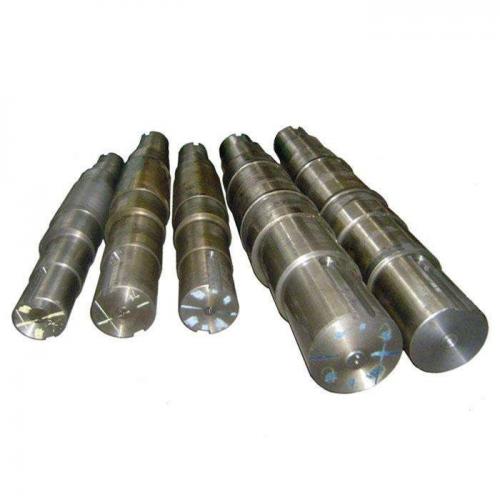

42CrMoS4 Forged Forging Steel Crusher Shaft eccentric shafts,Mining Mine rock Gyratory crusher Eccentric shafts Spindles,Crusher Belt Pulley Wheels.
42CrMoS4 Forged Forging Steel Mining Excavator Slewing Bearing Ball Races rings
42CrMoS4 Forged Forging Steel Oil Drilling Tools Gear Shaft Pinion Shafts
42CrMoS4 Forged Forging Steel helical gearing ground ship gearwheel Gear Wheels
42CrMoS4 Forged Forging Steel Dragline Drag Line Power Shovel Cam Swing Shafts Shafting Spindles,dragline CENTRE PINTLE
42CrMoS4 Forged Forging Steel Atomizer Shafts For Flue Gas Desulfurization scrubber Systems
42CrMoS4 Forged Forging Steel drilling rigs Mud pump herringbone gear shafts pinion shafts
42CrMoS4 Forging Forged Steel Thread Tie Rods
42CrMoS4 Forged Forging Steel Electric Shovel Shaft Couplings
42CrMoS4 Forged Forging Steel Granulator Gear Shafts
42CrMoS4 Conveyor Pulley Forging Forged Steel Shafts factory
42CrMoS4 Forged Forging Steel Hydraulic Honed Cylinders
42CrMoS4 Forged Forging Steel Mine hoist systems Equipment Shaft Shafting Spindles
42CrMoS4 Forged Forging Steel Rotary Dryer Trunnion Wheels
42CrMoS4 Forged Forging Forge Steel Cold Mill Decoiler Coiler Mandrel Drum Shafts
42CrMoS4 Forged Forging Steel bullgear Spider Gear Rims
42CrMoS4 Forged Forging Shovel SWING Rimmed GEARING Gear DRUM GEAR,SWING PROPEL Pinion SHAFTS
42CrMoS4 Forged Forging Steel Truck RING GEARS PLANET GEARS PINION SHAFTS
42CrMoS4 Forging Forge Steel Offshore subsea anchor winches Stub Shafts Spindles
42CrMoS4 Forged Forging Steel Seamless Hot rolled Truck concrete mixers semi-trailer bearings Rings
42CrMoS4 Forged Forging Steel Subsea oil gas drilling equipments Box Riser Joint
42CrMoS4 Forged Forging Railway locomotive Traction Motors end housings Rear End Shields
42CrMoS4 Forged Forging Steel Gas Steam Turbine Labyrinth seal bushing
42CrMoS4 Forged Forging Steel Gas Steam turbine generator air gap annular split baffle rings
42CrMoS4 Forged Forging Steels Christmas Trees wellhead Spool Body Bodies
42CrMoS4 Forged Forging forge Steel Gas Steam turbine Power generator Shafts
42CrMoS4 Forged Forging Gas Steam turbine Rotors Forward Stub Shafts Spindles
42CrMoS4 Forged Forging drilling tools,risers,connectors,flexible joint ,seals,flanges gasket factory
42CrMoS4 Forged Forging drilling tools,risers,connectors,flexible joint ,seals,flanges gasket
42CrMoS4 Forged Forging Steel gate valves Body Bodies bespoke flat bars
42CrMoS4 Forged Forging Steel double studded adapter flange
42CrMoS4 Forged Forging Steel Casing Heads,Tubing Heads,Casing Hangers,Tubing Hangers,Tubing Spools,Casing Spools,Spacer Spools
42CrMoS4 Forging/Forged Fracturing Mud Pump Fluid End ModuleForged/Forging Blowout Preventer RAM Annular Bop Body Bodies
42CrMoS4 Forged Forging Steel Pumping Equipment Eccentric Laterals Lateral Forgings
SNCM439 Forging Forged Steel shield TBM cutter Cutting Rings
42CrMoS4 Forging/Forged Steel Wellhead Christmas Tree Frac Head (Fracturing Head)
42CrMoS4 Forged Forging Steel drill head casings,collars,landing bowls
42CrMoS4 Forged Forging Forge Steel FLANGED BOSSES
42CrMoS4 Forged Forging Subsea Extrusions Oil Gas Inventory
42CrMoS4 Forged Forging Steel Annulus AWB/PWB wing blocks Body Bodies
42CrMoS4 Forged Forging Forge Steel Offshore subsea anchor winches Stub Shafts Spindles
42CrMoS4 Forged Forging Steel Lower Torque Hydro Master gate Frac valve Lower Master Valve Block Body Bodies
42CrMoS4 Forged Forging Oil field downhole drilling tool Mud Motor Drive shafts
42CrMoS4 Forged Forging Valve Balls,valve Bonnets,valve Body Bodies ,valve Stems,valve closures, valve seat rings, valve core, valve discs,for H type two way 2‐way one way back pressure valves, ball valve,check valve,gate valve
42CrMoS4 Forged Forging Steel Rotary Rock Drilling Tri-Cone Tricone Drill Bit cutter (PDC) Body Bodies factory
Forged Forging Steel Rotary Rock Drilling Tri-Cone Tricone Drill Bit cutter (PDC) Body Bodies
Welcome your inquiry of 42CrMoS4,1.7227 forged parts
