Description
Jiangsu Liangyi professional manufacturer of 1.4542(X5CrNiCuNb16-4,X 5 CrNiCuNb 16-4,X5CrNiCuNb164,X5CrNiCuNb16.4)open die forging parts and seamless rolled steel forged rings from china
Following is the shape of
1.4542(X5CrNiCuNb16-4,X 5 CrNiCuNb 16-4,X5CrNiCuNb164,X5CrNiCuNb16.4) forging steel material that we could do is:1.4542 Forged Steel round bars square bars Flat bars Rectangles Bars Rods,X 5 CrNiCuNb 16-4,Forged forging steel rings seamless rolled rings,X5CrNiCuNb16-4 Forged Forging Steel Hubs housing shell Sleeves Bushes Bushing Cases Hollow Bars,X5CrNiCuNb164 Forged Forging Steel Discs Disks Blocks plates,X5CrNiCuNb16.4 Forged Forging Steel Pipe Tubes Tubings Piping Shells Casings Case barrels Housings.
Following is forging products of 1.4542(X5CrNiCuNb16-4,X 5 CrNiCuNb 16-4,X5CrNiCuNb164,X5CrNiCuNb16.4) material that is used in following industry
1.4542 Forged Forging Gas Compressor Turbine Blades steel Flat Rectangles Bars
X5CrNiCuNb16-4 Forged Forging Gas steam turbine disks, turbine impeller,turbine blisk,turbine discs
X5CrNiCuNb16.4 Forging Steel Forging Forged Gas Steam Turbine Doubled-headed Double end Studs Fasteners Bolts
X5CrNiCuNb164 Forging Steel gas steam Turbine Guide Rings,seal rings Labyrinth Rings Packing Seal Diaphragm & Seal Ring Rotor End Rings contours Casing Rings
1.4542 forged forging steel pipes tubes shells piping tubing barrels housing, tube sheets, nozzles, channel flanges for boiler, heat exchanger,pressure vessel,reactors, heaters
1.4542 Forged Forging ultra high pressure water jet Waterjet cutting Machine Cutter Hydraulic Cylinder,accumulator attenuator
X5CrNiCuNb16-4 forged steel ultra high pressure water jet Waterjet cutting Machine Cutter intensifier pump Sealing Heads
X5CrNiCuNb164 Forged Forging Valve Balls,valve Bonnets,valve Body Bodies ,valve Stems,valve closures, valve seat rings, valve core, valve discs,for H type two way 2‐way one way back pressure valves, ball valve,check valve,gate pump
X5CrNiCuNb16.4Forged Forging Steel nuclear Power reactor coolant pumps Rotor Impellers
X5CrNiCuNb16-4 forged steel Mechanical Seal Discs
1.4542 forging steelPost Tensioning Bars
X5CrNiCuNb16-4 forging steel Gear Timing Adapter Plates
X5CrNiCuNb164 Forged Forging Marine Ship Boat Propeller Shafts
X5CrNiCuNb16.4 forged steel Pressure Port Sensor housing
1.4542 Forged Forging downhole drilling tool Mud Motor Splined Drive shafts,Down hole Electric electrical submersible pumps ESP motor Splined Shaft
X5CrNiCuNb16-4 Forged Forging Gas Air Compressor Rotor
X5CrNiCuNb164 Forged Forging Steels Christmas Trees wellhead Spool Body Bodies cylinder
X5CrNiCuNb16-4 Forged Forging Block Adaptor
X5CrNiCuNb164 Forged Forging venturi cone meter Body Bodies Blocks

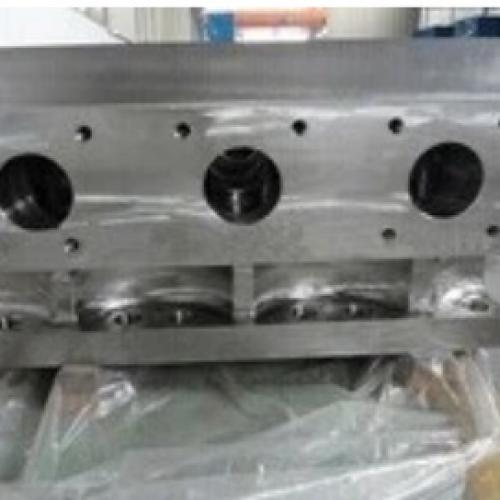

X5CrNiCuNb16.4 Forged Forging Steel frac pumps Fluid End Body Bodies Blocks Modules
1.4542 Forged Forging Steel gate valves Body Bodies bespoke flat bars
X5CrNiCuNb16-4 Forged Forging Steel drill head casings,collars,landing bowls
X5CrNiCuNb164 forging forged steel Couplings
X5CrNiCuNb16.4 forged steel Flowseal cryogenic High Performance BV Butterfly Valves HPBV shaft
X5CrNiCuNb16-4 forging steel Oil measurement valve Spool Ultrasonic flow meter bodies Body
X5CrNiCuNb16.4 Forged Forging Steel Subsea X Tree high pressure elbow
X5CrNiCuNb164 forged forging Steel wellhead locknut Venturi Bench
1.4542 Forged Forging Steel double studded adapter flange
X5CrNiCuNb16-4 Forged Forging Steel integral Mud Flange Flanged outlet Studded crosses
X5CrNiCuNb164 forged steel Downhole drilling tool Mud Motor End Caps
X5CrNiCuNb16-4 Forged Forging Steel Casing Heads,Tubing Heads,Casing Hangers,Tubing Hangers,Tubing Spools,Casing Spools,Spacer Spools
1.4542 Forged Forgig Steel nuclear reactor coolant pump Casing Shells body bodis blocks,nuclear reactor coolant pumps containment seal chamber Rooms,nuclear reactor coolant pumps containment seal chamber Rooms
X5CrNiCuNb16-4 forging Stainless Steel Intake Gate Hoist Cylinder Piston Rods
X5CrNiCuNb164 Forged Forging Steel Pressure Vessel STUDDING OUTLET
X5CrNiCuNb16.4 Forged Forging turbomachinery turbo centrifugal compressor Impeller,Compressor Shrouded Impellers
X5CrNiCuNb16-4 forging Forging/Forged Steel Wellhead Christmas Tree Frac Head (Fracturing Head)
X5CrNiCuNb164 Forged Forging Steel Forged Single Double Bossed boss Blanks FLANGED BOSSES
X5CrNiCuNb16.4 Forged Forging Steel PUMP Casing cover.PUMP BARREL,pump impeller,pump shafts, pump housing, pump shells,pump body,pump wear rings
X5CrNiCuNb16-4 Forged Forging forge Steel transition Cone
1.4542 Forged Forging Blowout Preventer RAM Annular dual Bops Body Bodies Block
X5CrNiCuNb164 forged forging steel Load Cell
X5CrNiCuNb16.4 forging steel Homogeniser Homogenising Pumping pistons Plunger
X5CrNiCuNb164 forged Steel Culvert Valve Piston Rods for Miter Gate
1.4542 forging steel Hydraulic Cylinder Piston Rod For Miter Gate Machinery
X5CrNiCuNb16-4 forged forging steel Tainter Valve Main Rod and Piston Rod
X5CrNiCuNb164 Forged Forging Duplex Stainless Steel Subsea Manifolds
FOllowing is production standard of 1.4542(X5CrNiCuNb16-4) forging steel parts
EN 10088-3: 2005 Stainless steels. Technical delivery conditions for semi-finished products, bars, rods, wire, sections and bright products of corrosion resisting steels for general purposes
EN 10250-4: 2000 Open steel die forgings for general engineering purposes. Stainless steels
EN 10088-1: 2005 Stainless steels. List of stainless steels
EN 10088-5: 2009 Stainless steels. Technical delivery conditions for bars, rods, wire, sections and bright products of corrosion resisting steels for construction purposes
EN 10088-4: 2009 Stainless steels. Technical delivery conditions for sheet/plate and strip of corrosion resisting steels for construction purposes
1.4542(X5CrNiCuNb16-4) is chromium-nickel copper steel with high strength and excellent toughness. It has a maximumtensile strength of 1200 N/mm². It has good corrosion resistance. Due to its high strength, it is heavilyemployed in the aerospace and high-technology driven industries in components such as gears, turbine blades, shafts, and molding dies. The most notable feature of this alloy is its high strength-toweight ratio. It is also known for its excellent resistance to wear and tear, making it an ideal choice for many applications.
FOllowing is chemical compostion of 1.4542(X5CrNiCuNb16-4) forged steel sleeves
Iron (Fe) 69.6 to 79
Chromium (Cr) 15 to 17
Nickel (Ni) 3.0 to 5.0
Copper (Cu) 3.0 to 5.0
Manganese (Mn) 0 to 1.5
Silicon (Si) 0 to 0.7
Molybdenum (Mo) 0 to 0.6
Niobium (Nb) 0 to 0.45
Carbon (C) 0 to 0.070
Phosphorus (P) 0 to 0.040
Sulfur (S) 0 to 0.015
Following of 1.4542(X5CrNiCuNb16-4) forging parts mechnical property :
Harden for 4 hrs at 550 °C followed by air cooling.
- UTS: 1070 N/mm2
- 0.2 % Yield strength: 1000 N/mm2
- Elongation (5d): 10 %
- Impact strength KV: 120 J
• Harden for 4 hrs at 620 °C followed by air cooling
- UTS: 950 N/mm2
- 0.2 % Yield strength: 750 N/mm2
- Elongation (5d): 16 %
- Impact strength KV: 140 J
Heat treatment of 1.4542 / X5CrNiCuNb16-4 forged steel parts is followings
Forging and rolling at 1150 - 900 ℃ with cooling in the air Annealing at 1020 - 1055 ℃ with cooling in oil or air Ageing for +P800 condition at 760 ℃ in the air for 2h + 620 ℃ in the air for 4h Ageing for
P850 condition at 610 - 630 ℃ in the air for 4h
Ageing for +P900 condition at 590-610 ℃ in the air for 1h Aging
for P930 condition at 620℃ in the air for 4hAgeing
for +P950 condition at 580 - 600℃ in the air for 1hAging
for +P960 condition at 590℃ in the air for 4hAging for
+P1070 condition at 550℃ in the air for 4hAgeing for +P1300 condition at 470 - 490℃ in the air for 1h
FOllowing is testing standard of our 1.4542 / X5CrNiCuNb16-4 forged steel parts
ASTM E10-12: Standard Test Method for Brinell hardness of Metallic Materials;
ASTM A370-12: Standard Test Methods and Definitions for Mechanical Testing of Steel Products;
ASTM E23-07a: Standard Test Methods for Notched Bar Impact Testing of Metallic Materials;
AMS 2315G: Determination of Delta Ferrite Content,
ASTM E45-05: Standard Test Methods for Determining the Inclusion Content of Steel,
ASTM E112-10: Standard Test Methods for Determining Average Grain Size,
ASTM E837: Standard Test Method for Determining Residual Stresses by the Hole-Drilling Strain-Gage Meth
All our finish production of 1.4542 / X5CrNiCuNb16-4 forged steel material should will done in Following NDE shall be performed in delivery condition:
- Visual inspection
Material verification test
- 100% UT- inspection according to EN 10228-3 (table 3). Depending on the forging geometry,
following inspection types are applicable:
- for 1.4542 forging bar shape components; type 1 (inspection may also be carried out as per EN10308 for type 1)
- for X5CrNiCuNb16-4 forged discs and plate- like components: type 2
- for X5CrNiCuNb164 forging ring or bushing- like components: type 3b and 3
