Description
Jiangsu Liangyi is professional manufacturer of 34CrMoS4,1.7226,34 CrMoS 4 open die forging parts and seamless rolled steel forged rings from china

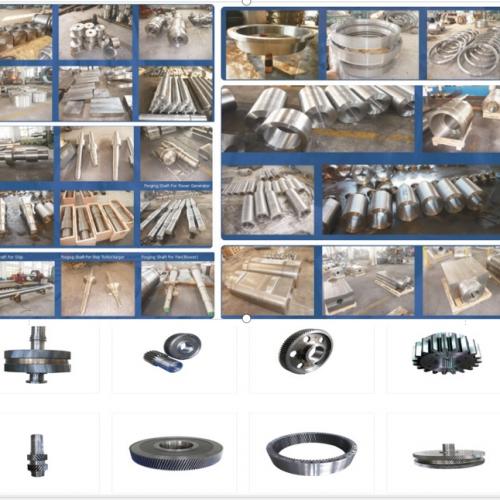

Following is the shape of 34CrMoS4,1.7226,34 CrMoS 4 forging steel material that we could do is:34CrMoS4 Forged Steel round bars square bars Flat bars Rectangles Bars Rods,
34CrMoS4 Forged forging steel rings seamless rolled rings,1.7226 Forged Forging Steel Hubs housing shell Sleeves Bushes Bushing Cases Hollow Bars,34CrMoS4 forging forged steel shafts,gear,pinion shafts,spindles,gear wheel,1.7226 Forged Forging Steel Discs Disks Blocks plates,34CrMoS4 Forged Forging Steel Pipe Tubes Tubings Piping Shells Casings Case barrels Housings.
Following is forging products of 34CrMoS4,1.7226,34 CrMoS 4 material that is used in following industry
34CrMoS4 Forged Forging Sugar Mill Gear shafts,pinion shafts,roller shafts,flanges coupling
34CrMoS4 Cement Mill Rotary Kiln Forged Forging Steel case hardened ground Pinion Shafts
1.7226 Forging Forging Steel mill gear pinion shafts
34CrMoS4 Forging wind turbine gearbox gear shafts,ring gears
1.7226 forging forged locomotive transmission shafts
34CrMoS4 forging forged crane wheels
34CrMoS4 hydro turbine shafts
34CrMoS4 Forging gearbox,gear reducer gear wheels, pinion shafts,ring gears,
34CrMoS4 Forging crankshafts for gas compressor, mechanical presses,pump.
34CrMoS4 forging steel Spindles
34 CrMoS 4 Forging steel gear couplings
34CrMoS4 Forged Forging Rolled Steel Granulators driers coaters coolers Riding Gear Rings
34CrMoS4 Forged Forging Steel Cement Plant Pull Torque Rods
34CrMoS4 Forged Forging Steel Crusher Shaft eccentric shafts,Mining Mine rock Gyratory crusher Eccentric shafts Spindles,Crusher Belt Pulley Wheels.
34 CrMoS 4 Forged Forging Steel Mining Excavator Slewing Bearing Ball Races rings
34CrMoS4 Forged Forging Steel Oil Drilling Tools Gear Shaft Pinion Shafts
34CrMoS4 Forged Forging Steel helical gearing ground ship gearwheel Gear Wheels
34CrMoS4 Forged Forging Steel Dragline Drag Line Power Shovel Cam Swing Shafts Shafting Spindles,dragline CENTRE PINTLE
34CrMoS4 Forged Forging Steel Atomizer Shafts For Flue Gas Desulfurization scrubber Systems
34CrMoS4 Forged Forging Steel drilling rigs Mud pump herringbone gear shafts pinion shafts
34CrMoS4 Forging Forged Steel Thread Tie Rods
34CrMoS4 Forged Forging Steel Electric Shovel Shaft Couplings
34CrMoS4 Forged Forging Steel Granulator Gear Shafts
34CrMoS4 Conveyor Pulley Forging Forged Steel Shafts factory
34CrMoS4 Forged Forging Steel Hydraulic Honed Cylinders
34 CrMoS 4 Forged Forging Steel Mine hoist systems Equipment Shaft Shafting Spindles
34CrMoS4 Forged Forging Steel Rotary Dryer Trunnion Wheels
34CrMoS4 Forged Forging Forge Steel Cold Mill Decoiler Coiler Mandrel Drum Shafts
34CrMoS4 Forged Forging Steel bullgear Spider Gear Rims
34 CrMoS 4 Forged Forging Shovel SWING Rimmed GEARING Gear DRUM GEAR,SWING PROPEL Pinion SHAFTS
34CrMoS4 Forged Forging Steel Truck RING GEARS PLANET GEARS PINION SHAFTS
34CrMoS4 Forging Forge Steel Offshore subsea anchor winches Stub Shafts Spindles
34 CrMoS 4 Forged Forging Steel Seamless Hot rolled Truck concrete mixers semi-trailer bearings Rings
34CrMoS4 Forged Forging Steel Subsea oil gas drilling equipments Box Riser Joint
34CrMoS4 Forged Forging Railway locomotive Traction Motors end housings Rear End Shields
34CrMoS4 Forged Forging Steel Gas Steam Turbine Labyrinth seal bushing
34CrMoS4 Forged Forging Steel Gas Steam turbine generator air gap annular split baffle rings
34CrMoS4 Forged Forging Steels Christmas Trees wellhead Spool Body Bodies
34CrMoS4 Forged Forging forge Steel Gas Steam turbine Power generator Shafts
34CrMoS4 Forged Forging Gas Steam turbine Rotors Forward Stub Shafts Spindles
34CrMoS4 Forged Forging drilling tools,risers,connectors,flexible joint ,seals,flanges gasket factory
34CrMoS4 Forged Forging drilling tools,risers,connectors,flexible joint ,seals,flanges gasket
34CrMoS4 Forged Forging Steel gate valves Body Bodies bespoke flat bars
34CrMoS4 Forged Forging Steel double studded adapter flange
34CrMoS4 Forged Forging Steel Casing Heads,Tubing Heads,Casing Hangers,Tubing Hangers,Tubing Spools,Casing Spools,Spacer Spools
34CrMoS4 Forging/Forged Fracturing Mud Pump Fluid End ModuleForged/Forging Blowout Preventer RAM Annular Bop Body Bodies
34CrMoS4 Forged Forging Steel Pumping Equipment Eccentric Laterals Lateral Forgings
SNCM439 Forging Forged Steel shield TBM cutter Cutting Rings
34CrMoS4 Forging/Forged Steel Wellhead Christmas Tree Frac Head (Fracturing Head)
34CrMoS4 Forged Forging Steel drill head casings,collars,landing bowls
34CrMoS4 Forged Forging Forge Steel FLANGED BOSSES
34CrMoS4 Forged Forging Subsea Extrusions Oil Gas Inventory
34CrMoS4 Forged Forging Steel Annulus AWB/PWB wing blocks Body Bodies
34CrMoS4 Forged Forging Forge Steel Offshore subsea anchor winches Stub Shafts Spindles
34CrMoS4 Forged Forging Steel Lower Torque Hydro Master gate Frac valve Lower Master Valve Block Body Bodies
34CrMoS4 Forged Forging Oil field downhole drilling tool Mud Motor Drive shafts
34CrMoS4 Forged Forging Valve Balls,valve Bonnets,valve Body Bodies ,valve Stems,valve closures, valve seat rings, valve core, valve discs,for H type two way 2‐way one way back pressure valves, ball valve,check valve,gate valve
34CrMoS4 Forged Forging Steel Rotary Rock Drilling Tri-Cone Tricone Drill Bit cutter (PDC) Body Bodies factory
Forged Forging Steel Rotary Rock Drilling Tri-Cone Tricone Drill Bit cutter (PDC) Body Bodies
34CrMoS4 is suitable for parts of high strength and ductility requirements at mean and higher heat-treatment sections and enhanced workability in vehicle manufacturing, engine and machine engineering (e.g. crankshafts, steering knuckles, pinions). Lowest application temp. -40 °C.
FOllowing is production standard of 34CrMoS4 forged parts
EN 10083-3: 2006 Steels for quenching and tempering. Technical delivery conditions for alloy steels
Steel making Process of 34CrMoS4 forging round bars
Electric arc furnace or blast furnace and oxygen blast converter shall be used, each with subsequent ladle treatment;
Steel shall be vacuum degassed;
Steel shall be non-radioactive;
Quality class shall beat least MQ in accordance with ISO 6336-5 or DIN 3990-5;
Standard EN 10083 shall be followed.
Chemical composition of 34 CrMoS 4 forged parts
C 0.3 - 0.37
Si max 0.4
Mn 0.6 - 0.9
P max 0.025
S 0.02 - 0.04
Cr 0.9 - 1.2
Mo 0.15 - 0.3
Mechanical properties of the 34CrMoS4 forged Raw Material
Yield strength Mpa ≥800
tensile strength Mpa 1000-1200
elongation，% ≥11
redcution,%≥45
charpy test，J≥40
hardness ，HB,298-359
The following details shall be furnished in the test certificate of finished 34CrMoS4 forged steel:
Heat No. , and melting type.
Dimensional inspection
Details of heat treatment cycle followed.
Results of chemical analysis including tramp elements.
Results of mechanical tests, including hardness test. All individual values shall be reported.Results of ultrasonic tests
Results of surface crack examination
Confirmation of the visual inspection
Confirmation of the verification inspection
Results of additional tests called for in the drawing/order.
Welcome your inquiry of 34CrMoS4,1.7226,34 CrMoS 4 forging parts
