Description
Jiangsu Liangyi is professional manufacturer of AMS 5772,AMS5772 open die forging parts and seamless rolled steel forged rings from china

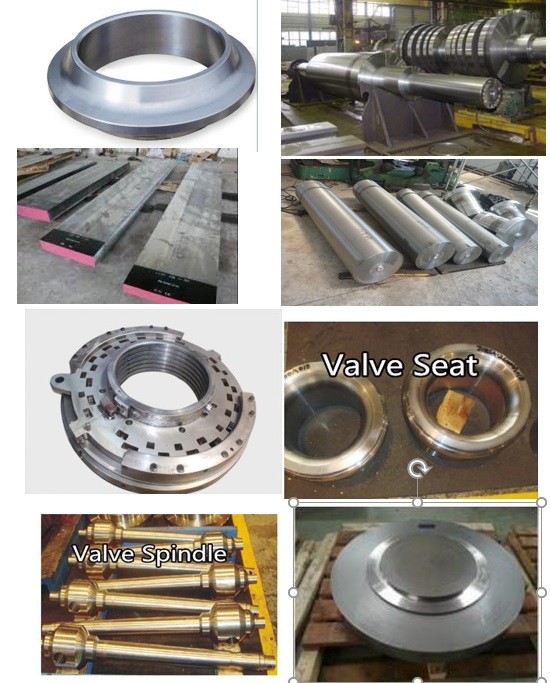

Following is the shape of AMS 5772 forging steel material that we could do is:AMS 5772 Forged Steel round bars square bars Flat bars Rectangles Bars Rods,Haynes AMS 5772 Forged forging steel rings seamless rolled rings,AMS 5772 Forged Forging Steel Hubs housing shell Sleeves Bushes Bushing Cases Hollow Bars,AMS 5772 Forged Forging Steel Discs Disks Blocks plates,AMS 5772 Forged Forging Steel Pipe Tubes Tubings Piping Shells Casings Case barrels Housings.
Following is forging products of AMS 5772 material that is used in following industry
AMS 5772 Forged Forging Gas Compressor Turbine Blades steel Flat Rectangles Bars
AMS 5772 Forged Forging Gas steam turbine disks, turbine impeller,turbine blisk,turbine discs
AMS 5772 Forging Steel Forging Forged Gas Steam Turbine Doubled-headed Double end Studs Fasteners Bolts bolting
AMS 5772 Forging Steel gas steam Turbine Guide Rings,seal rings Labyrinth Rings Packing Seal Diaphragm & Seal Ring Rotor End Rings contours Casing Rings
AMS 5772 Forged Forging Rolled Gas Steam Turbine Inner Outer Heat Shields
AMS 5772 Forged Forging Rolled Steel Gas Steam Turbine shrouds
AMS 5772 forging forged steel tube sheets, baffle plates, nozzles,flanges for heat exchanger
AMS 5772 material for furnace retorts, chains and fixtures, burner flame shrouds, recuperator internals, dampers, nitriding furnace internals, heat-treating baskets, grates, trays, sparger tubes, thermocouple protection tubes, cyclone internals
AMS 5772 Forged Forging Steel Gas Steam turbine diaphragm diapharagm nozzles
AMS 5772 forged forging hot working dies,tooling, die blocks,mould, mold.
AMS 5772 Forged Forging Gas Turbine LPT 1st & 2st 2nd Stg Stage Turbine Case Casings
AMS 5772 Forged Forging Steel power plant steam turbine control reheat valve disc Disk
AMS 5772 Forged forging Gas Steam Turbine Valve Spindles/Stems/Rods,
AMS 5772 Forging Steel Gas Steam Turbine MSV/GV/CV/CRV Valve Seats, Valve Cores, Valve Sleeves Spools,,Main Steam Valve Covers Bonnets Sleeves
AMS 5772 is an industrial superalloy that is widely used in the aerospace industry, as well as in the manufacture of gas turbine engine. Common applications include afterburners, transition ducts, combustion cans, and flame holders.
In addition to heat resistance, AMS 5772 are virtually impervious to oxidization at temperatures as high as 2000 °F (1095 °C). Inconel 188 also has a very high melting point and will not be structurally compromised until temperature exposures exceed 2400 °F (1315 °C). It is highly recommended for applications which require resistance to the hot corrosion that can be caused by exposure to sulfate deposits.
AMS 5772 has a stabilized face-centered-cubic matrix containing nominally 22% Cr, 0.05% La and 0.4% Si to promote oxidation resistance. W at 14% is added for solid solution strengthening. Strengthening is further enhanced by the precipitation of M6C and M23C6 carbides. Intermediate temperature ductility is achieved by deterring the formation of a A2B Laves-type phase through selective alloying.
Chemical composition of AMS 5772 forging turbine parts is as
Element Minimum Maximum
Carbon 0.05 0.15
Manganese -- 0.15
Silicon 0.20 0.50
Silicon 0.20 0.50
Phosphorous -- 0.020
Sulfur -- 0.015
Chromium 20.00 24.00
Nickel 20.00 24.00
Tungsten 13.00 16.00
Lathanum 0.02 0.12
Boron -- 0.015
Iron -- 3.00
Cobalt remainder
mechanical property of for AMS 5772 forged round bars is as follow
Properties Metric Imperial
Tensile strength 862 MPa
Yield strength 379 MPa
Elongation at break 40 %
In order to make sure that all our finished AMS 5772 forging material no defects such as interlayer, crack, impurity, looseness and over-burning. All our forging pump fluid ends will do folloowing testing process, non-destructive testing,destructive testing,metallographic inspection,chemical analysis, PMI (Positive Material Identification)
All our AMS 5772 forging parts will have following inspection report:
Chemical composition report; Mechanical properties report; UT test report; Heat treatment report; Dimensions check report.
Welcome your inquiry of AMS 5772 forging parts
