Description
Jiangsu Liangyi is professional manufacturer of 35NiCrMo14,35NCD14,35 NiCrMo 14,35 NCD 14 open die forging parts and seamless rolled steel forged rings from china
Following is the shape of 35NiCrMo14,35NCD14,35 NiCrMo 14,35 NCD 14 forging steel material that we could do is:35NiCrMo14 Forged Steel round bars square bars Flat bars Rectangles Bars Rods,35NiCrMo14 Forged forging steel rings seamless rolled rings,35NCD14 Forged Forging Steel Hubs housing shell Sleeves Bushes Bushing Cases Hollow Bars,35NiCrMo14 forging forged steel shafts,gear,pinion shafts,spindles,gear wheel,35NCD14 Forged Forging Steel Discs Disks Blocks plates,35NiCrMo14 Forged Forging Steel Pipe Tubes Tubings Piping Shells Casings Case barrels Housings.

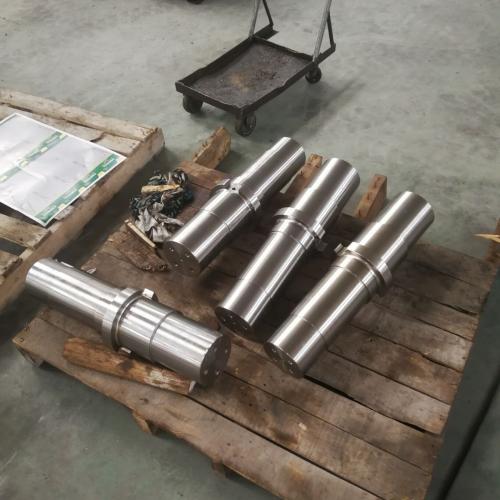

Following is forging products of 35NiCrMo14,35NCD14,35 NiCrMo 14,35 NCD 14 material that is used in following industry
35NiCrMo14 Forged Forging Sugar Mill Gear shafts,pinion shafts,roller shafts,flanges coupling
35NiCrMo14 Cement Mill Rotary Kiln Forged Forging Steel case hardened ground Pinion Shafts
35NCD14 Forging Forging Steel mill gear pinion shafts
35NiCrMo14 Forging wind turbine gearbox gear shafts,ring gears
35NCD14 forging forged locomotive transmission shafts
35NiCrMo14 forging forged crane wheels
35NiCrMo14 hydro turbine shafts
35NiCrMo14 Forging gearbox,gear reducer gear wheels, pinion shafts,ring gears,
35NiCrMo14 Forging crankshafts for gas compressor, mechanical presses,pump.
35NiCrMo14 forging steel Spindles
35 NiCrMo 14 Forging steel gear couplings
35NiCrMo14 Forged Forging Rolled Steel Granulators driers coaters coolers Riding Gear Rings
35NiCrMo14 Forged Forging Steel Cement Plant Pull Torque Rods
35NiCrMo14 Forged Forging Steel Crusher Shaft eccentric shafts,Mining Mine rock Gyratory crusher Eccentric shafts Spindles,Crusher Belt Pulley Wheels.
35 NiCrMo 14 Forged Forging Steel Mining Excavator Slewing Bearing Ball Races rings
35NiCrMo14 Forged Forging Steel Oil Drilling Tools Gear Shaft Pinion Shafts
35NiCrMo14 Forged Forging Steel helical gearing ground ship gearwheel Gear Wheels
35NiCrMo14 Forged Forging Steel Dragline Drag Line Power Shovel Cam Swing Shafts Shafting Spindles,dragline CENTRE PINTLE
35NiCrMo14 Forged Forging Steel Atomizer Shafts For Flue Gas Desulfurization scrubber Systems
35NiCrMo14 Forged Forging Steel drilling rigs Mud pump herringbone gear shafts pinion shafts
35NiCrMo14 Forging Forged Steel Thread Tie Rods
35NiCrMo14 Forged Forging Steel Electric Shovel Shaft Couplings
35NiCrMo14 Forged Forging Steel Granulator Gear Shafts
35NiCrMo14 Conveyor Pulley Forging Forged Steel Shafts factory
35NiCrMo14 Forged Forging Steel Hydraulic Honed Cylinders
35 NiCrMo 14 Forged Forging Steel Mine hoist systems Equipment Shaft Shafting Spindles
35NiCrMo14 Forged Forging Steel Rotary Dryer Trunnion Wheels
35NiCrMo14 Forged Forging Forge Steel Cold Mill Decoiler Coiler Mandrel Drum Shafts
35NiCrMo14 Forged Forging Steel bullgear Spider Gear Rims
35 NiCrMo 14 Forged Forging Shovel SWING Rimmed GEARING Gear DRUM GEAR,SWING PROPEL Pinion SHAFTS
35NiCrMo14 Forged Forging Steel Truck RING GEARS PLANET GEARS PINION SHAFTS
35NiCrMo14 Forging Forge Steel Offshore subsea anchor winches Stub Shafts Spindles
35 NiCrMo 14 Forged Forging Steel Seamless Hot rolled Truck concrete mixers semi-trailer bearings Rings
35NiCrMo14 Forged Forging Steel Subsea oil gas drilling equipments Box Riser Joint
35NiCrMo14 Forged Forging Railway locomotive Traction Motors end housings Rear End Shields
35NiCrMo14 Forged Forging Steels Christmas Trees wellhead Spool Body Bodies
35NiCrMo14 Forged Forging forge Steel Gas Steam turbine Power generator Shafts
35NiCrMo14 Forged Forging Steel Rotary Rock Drilling Tri-Cone Tricone Drill Bit cutter (PDC) Body Bodies factory
Forged Forging Steel Rotary Rock Drilling Tri-Cone Tricone Drill Bit cutter (PDC) Body Bodies
35NiCrMo14 is are permanent chromium-nickel-molybdenum alloy construction steels for the most heavy-duty machine parts, construction and equipment, and for aviation and aerospace industries.
Steel making Process of 35NiCrMo14 forging round bars
Electric arc furnace or blast furnace and oxygen blast converter shall be used, each with subsequent ladle treatment;
Steel shall be vacuum degassed;
Steel shall be non-radioactive;
Quality class shall beat least MQ in accordance with ISO 6336-5 or DIN 3990-5;
Standard EN 10083 shall be followed.
Chemical composition of 35 NiCrMo 14 forged parts
Chemical analysis shall be made from a test sample taken just prior to the pouring or during pouring and shall conform to the chemical requirements in the following table:
C% 0,30-0,40
Si% 0.10-0,40
Mn% 0,20-0,50
P% max 0,030
S% max 0,025
Cr% 1,20-1.60
Mo% 0,20-0,40
Ni% 3,2-3.7
FOllowing is heat treatment way of 35NiCrMo14,35NCD14 forging parts
Normalizing annealing 850 - 880℃
Softening annealing 650 - 700℃
Hardening 865 - 885℃
Tempering 550 - 650℃
Hardness in softened state < 269 HB
Following is mechanical property of 35NiCrMo14,35NCD14 forged material
• Hardened at 875°C. Sub-zero treatment (-75°C).
Temper at 200°C.
- UTS: 1850 N/mm2
- 0.2 % Yield strength: 1400 N/mm2
- Elongation (5d): 8 %
- Impact strength KCU: 40 J/cm2
Hardened at 875°C / air quench.
Temper at 650°C.
- UTS: 1000 N/mm2
- 0.2 % Yield strength: 850 N/mm2
- Elongation (5d): 19 %
- Impact strength KCU: 130 J/cm
All our Reports 35NiCrMo14,35NCD14 forging material shall be provided of all activities as indicated on the Inspection and Test Plan
These shall include:
1) Purchase order number and order item of 35NiCrMo14 material
2) Drawing number. of 35NiCrMo14 forging parts
3) Clients definition specification number (ATD).35NiCrMo14 forging
4) Number of forgings in the batch. in 35NiCrMo14 Forging steel flat bars
5) Batch identity of the 35NCD14 forgings.
6) Statement of conformity with the Manufacturing, Inspection and Control Process Plan[MPP] and any agreed deviations.of 35NiCrMo14 forging steel material
7) Statement of compliance with the forging deformation requirements. for 35NCD14 material
8) Details of heat treatments including time at soaking temperature, cooling methods and terminal temperature on cooling (where required by the material specification). of 35NCD14 forging pipes
9) Chemical analysis of all 35NCD14 forging parts
10) Results of required mechanical tests. of 35NiCrMo14 forging rings
11) Results of hardness tests of all 35NiCrMo14 forgings
12) Results of required microstructural tests (where applicable) of 35NiCrMo14 forging steel
13) Certificate of conformity of dimensions for 35NiCrMo14 forged parts
Welcome your inquiry of 35NiCrMo14,35NCD14,35 NiCrMo 14,35 NCD 14 forging parts
