Description
Jiangsu Liangyi is professional manufacturer of Hastelloy B2, Alloy B-2, UNS N10665,Hastelloy Alloy B2 open die forging parts and seamless rolled steel forged rings from china

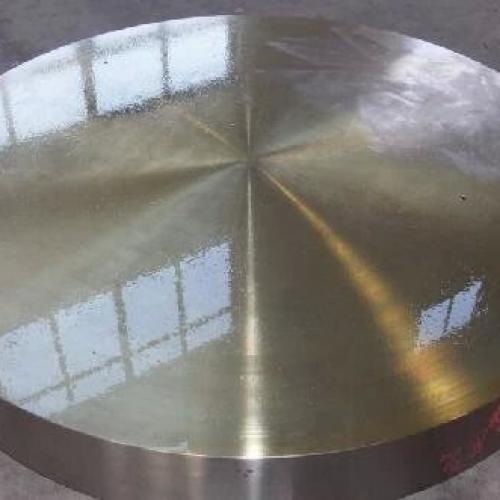

Following is the shape of Hastelloy B2, Alloy B-2, UNS N10665,Hastelloy Alloy B2 forging steel material that we could do is:Hastelloy B2 Forged Steel round bars square bars Flat bars Rectangles Bars Rods,Hastelloy Alloy B2 Forged forging steel rings seamless rolled rings,Alloy B-2 Forged Forging Steel Hubs housing shell Sleeves Bushes Bushing Cases Hollow Bars,UNS N10665 Forged Forging Steel Discs Disks Blocks plates,Hastelloy B2 Forged Forging Steel Pipe Tubes Tubings Piping Shells Casings Case barrels Housings.
Following is forging products of Hastelloy B2, Alloy B-2, UNS N10665,Hastelloy Alloy B2 material that is used in following industry
Hastelloy Alloy B2 forging Forged Drilling Pipes Tubes Drill Rods drill Drilling collar
Alloy B-2 Forged Forging drilling tools,risers,connectors,flexible joint ,seals,flanges gasket
Hastelloy B2 Forged Forging Valve Balls,valve Bonnets,valve Body Bodies ,valve Stems,valve closures, valve seat rings, valve core, valve discs,for H type two way 2‐way one way back pressure valves, ball valve,check valve,gate valve
Alloy B-2 Forged Forging Steel nuclear Power reactor coolant pumps Rotor Impellers
Hastelloy Alloy B2 Forged Forging Steel Butterfly Valve Main Shafts Spindles
Alloy B-2 Forged Forging Swept branches outlets steel fittings swept saddles
Hastelloy B2 Forged Forging downhole drilling tool Mud Motor Splined Drive shafts,Down hole Electric electrical submersible pumps ESP motor Splined Shaft
Hastelloy B2 Forged Forging Gas Air Compressor Rotor
Alloy B-2 Forged Forging venturi cone meter Body Bodies Blocks
UNS N10665 Forged Forging Steel gate valves Body Bodies bespoke flat bars
Hastelloy B2 forged steel Flowseal cryogenic High Performance BV Butterfly Valves HPBV shaft
Hastelloy B2 forging steel Oil measurement valve Spool Ultrasonic flow meter bodies Body
Hastelloy Alloy B2 Forged Forging Steel double studded adapter flange
Hastelloy Alloy B2 Forged Forging Steel integral Mud Flange Flanged outlet Studded crosses
UNS N10665 Forged Forging Steel Casing Heads,Tubing Heads,Casing Hangers,Tubing Hangers,Tubing Spools,Casing Spools,Spacer Spools
Hastelloy Alloy B2 Forged Forgig Steel nuclear reactor coolant pump Casing Shells body bodis blocks,nuclear reactor coolant pumps containment seal chamber Rooms,nuclear reactor coolant pumps containment seal chamber Rooms
Hastelloy Alloy B2 Forged Forging turbomachinery turbo centrifugal compressor Impeller,Compressor Shrouded Impellers
Hastelloy Alloy B2 Forged Forging Steel Forged Single Double Bossed boss Blanks FLANGED BOSSES
Hastelloy Alloy B2 Forged Forging Steel PUMP Casing cover.PUMP BARREL,pump impeller,pump shafts, pump housing, pump shells,pump body,pump wear rings,pump case casing.
Alloy B-2 Forged Forging forge Steel transition Cone
UNS N10665 Forged Forging Steel Pressure Vessel Reactor Nozzles
Hastelloy B2 Forging Steel Gas Steam Turbine MSV/GV/CV/CRV Valve Seats, Valve Cores, Valve Sleeves Spools,,Main Steam Valve Covers Bonnets Sleeves
Hastelloy B2 forged forging steel pipes tubes shells piping tubing barrels housing, tube sheets,baffle plates, nozzles, channel flanges for boiler, heat exchanger,pressure vessel,reactors, heaters
Hastelloy B2 is nickel-molybdenum alloy with significant resistance to reducing environments, such as hydrogen chloride gas and sulfuric, acetic and phosphoric acids. Hastelloy B2 provides resistance to pure sulfuric acid and a number of non-oxidizing acids. The alloy should not be used in oxidizing media or where oxidizing contaminants are available in reducing media. Premature failure may occur if alloy B2 is used where iron or copper is present in a system containing hydrochloric acid.
Alloy B2 forged parts is widely used in Chemical processes,Vacuum furnaces,Mechanical components in reducing environments
All our Hastelloy B2 forged material must give the material a required purity necessary for the application in following melting methods
one is triple melted material,VIM+ESR+VAR., the another one is double melted material,VIM+VAR.
FOllowing is chemical compostion of Hastelloy Alloy B2 forged steel rings
Nickel: Balance
Molybdenum: 26.00-30.00
Iron: 2.00 max
Chromium: 1.00 max
Cobalt: 1.00 max
Manganese: 1.00 max
Silicon: 0.10 max
Phosphorus: 0.040 max
Sulfur: 0.030 max
Carbon: 0.02 max
FOllowing is heat treatment methods of hastelloy B2 forging material
solution treated at 1065°C (1950°F) and then rapidly quenched in normal conditions that require product forms to be furnished and used. In cases where bright annealed product forms such as sheet and strip are required, HASTELLOY(r) B-2 can be solution treated at 1149°C (2100°F) and then cooled in a hydrogen atmosphere so as to avoid oxidation of the bright surface.
Following of Hastelloy B2 forging parts heat treatment nechanical property Delivery condition :
Yield Strength Min 51KSI
Ultimate Tensile Min 110KSI
Elongation min 40%
All documentation of finished Hastelloy B2 forging material inspection document must be written in English.
All results must be given in accordance with the Sl system.
All documentation shall be well readable without risk of incorrect interpretation.
Inspection certificate EN 10204-3.1,with heat analysis and results of all testing in accordance with 6 Delivery inspection.
Heat treatment certificate,with information on the temperature and soaking time. 2-3 Surplus test material shall be separated from the blank and stored by the supplier for a minimum of three month after accepted delivery.If the test material is to be delivered,this will be stated in the purchase order or in a separate message.
A“Declaration of conformity”in accordance with EN ISO/IEC 17050 may be accepted as reporting,if this is stated in an agreement with the purchaser.
The declaration shall contain:
All information necessary for full tracking to delivered goods and/or process used.
- Reference to all inspection and test reports.
ALl our Hastelloy B2 forging material shall file all subordinated documents at least 15 years after the delivery of the goods or the service.
Following is inspection standard of Hastelloy B2 forged parts
ASTM A604 Standard test methods for macroetch testing of consumable electrode
remelted steel bars and billets
ASTM E112 Standard test methods for determining average grain size
EN ISO 6892-1:20 Metallic materials -Tensile testing -Part 1:Method of test at ambient temperature
ISO 204:2009 Metallic materials -Uniaxial creep testing in tension -Method of test
EN 10204 Metallic products -Types of inspection documents
EN ISO/IEC 17050:2004 Conformity assessment -Supplier's declaration of conformity -General requirements
Welcome your inquiry of Hastelloy B2, Alloy B-2, UNS N10665,Hastelloy Alloy B2 forging forged steel parts
