Description
Jiangsu Liangyi is professional manufacturer of 30CrMoV9,30 CrMoV 9,1.7707 open die forging parts and seamless rolled steel forged rings from china

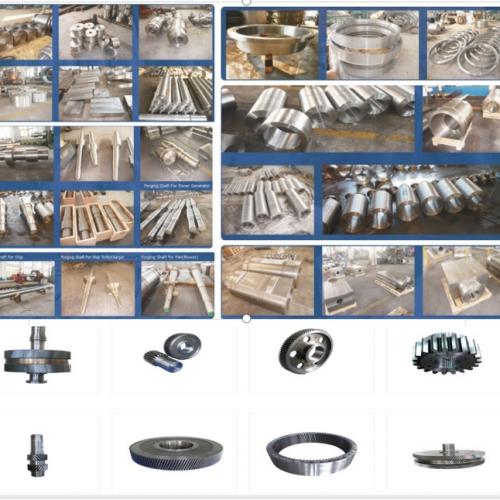

Following is the shape of 30CrMoV9,30 CrMoV 9,1.7707 forging steel material that we could do is:30CrMoV9 Forged Steel round bars square bars Flat bars Rectangles Bars Rods,30CrMoV9 Forged forging steel rings seamless rolled rings,1.7707 Forged Forging Steel Hubs housing shell Sleeves Bushes Bushing Cases Hollow Bars,30CrMoV9 forging forged steel shafts,gear,pinion shafts,spindles,gear wheel,1.7707 Forged Forging Steel Discs Disks Blocks plates,30CrMoV9 Forged Forging Steel Pipe Tubes Tubings Piping Shells Casings Case barrels Housings.
Following is forging products of 30CrMoV9,30 CrMoV 9,1.7707 material that is used in following industry
30CrMoV9 Forged Forging Sugar Mill Gear shafts,pinion shafts,roller shafts,flanges coupling
30CrMoV9 Cement Mill Rotary Kiln Forged Forging Steel case hardened ground Pinion Shafts
1.7707 Forging Forging Steel mill gear pinion shafts
30CrMoV9 Forging wind turbine gearbox gear shafts,ring gears
1.7707 forging forged locomotive transmission shafts

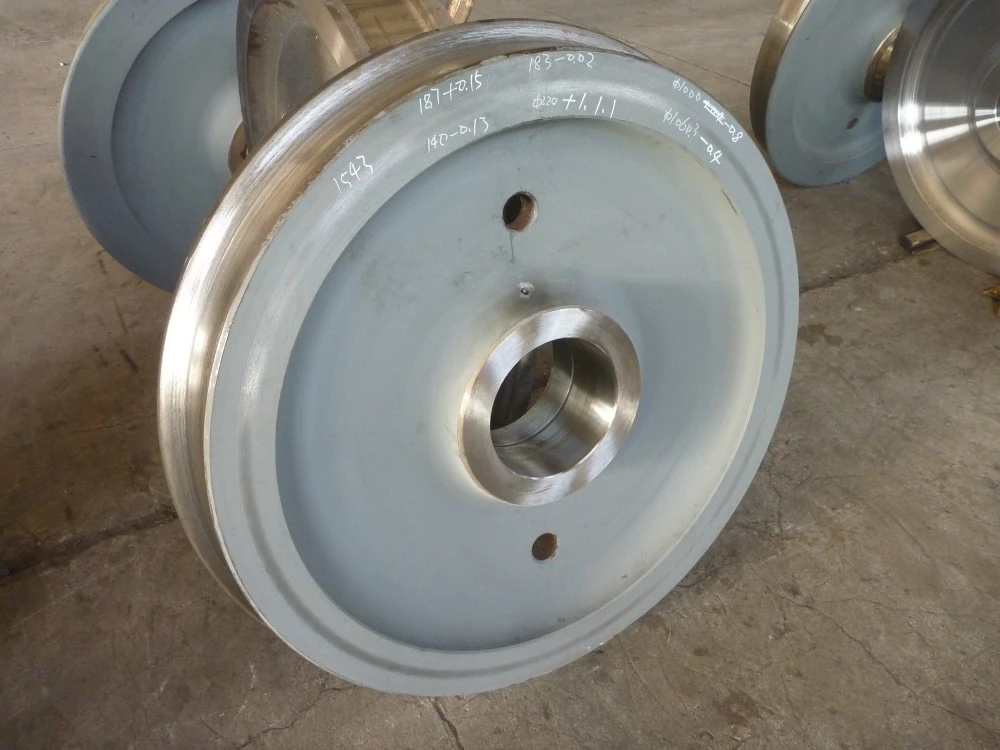

30CrMoV9 forging forged crane wheels
30CrMoV9 hydro turbine shafts
30CrMoV9 Forging gearbox,gear reducer gear wheels, pinion shafts,ring gears,
30CrMoV9 Forging crankshafts for gas compressor, mechanical presses,pump.
30CrMoV9 forging steel Spindles
30CrMoV9 Forging steel gear couplings
30CrMoV9 Forged Forging Rolled Steel Granulators driers coaters coolers Riding Gear Rings
30CrMoV9 Forged Forging Steel Cement Plant Pull Torque Rods
30CrMoV9 Forged Forging Steel Crusher Shaft eccentric shafts,Mining Mine rock Gyratory crusher Eccentric shafts Spindles,Crusher Belt Pulley Wheels.
30CrMoV9 Forged Forging Steel Mining Excavator Slewing Bearing Ball Races rings
30CrMoV9 Forged Forging Steel Oil Drilling Tools Gear Shaft Pinion Shafts
30CrMoV9 Forged Forging Steel helical gearing ground ship gearwheel Gear Wheels
30CrMoV9 Forged Forging Steel Dragline Drag Line Power Shovel Cam Swing Shafts Shafting Spindles,dragline CENTRE PINTLE
30CrMoV9 Forged Forging Steel Atomizer Shafts For Flue Gas Desulfurization scrubber Systems
30CrMoV9 Forged Forging Steel drilling rigs Mud pump herringbone gear shafts pinion shafts
30CrMoV9 Forging Forged Steel Thread Tie Rods
30CrMoV9 Forged Forging Steel Electric Shovel Shaft Couplings
30CrMoV9 Forged Forging Steel Granulator Gear Shafts
30CrMoV9 Conveyor Pulley Forging Forged Steel Shafts factory
30CrMoV9 Forged Forging Steel Hydraulic Honed Cylinders
30CrMoV9 Forged Forging Steel Mine hoist systems Equipment Shaft Shafting Spindles
30CrMoV9 Forged Forging Steel Rotary Dryer Trunnion Wheels
30CrMoV9 Forged Forging Forge Steel Cold Mill Decoiler Coiler Mandrel Drum Shafts
30CrMoV9 Forged Forging Steel bullgear Spider Gear Rims
30CrMoV9 Forged Forging Shovel SWING Rimmed GEARING Gear DRUM GEAR,SWING PROPEL Pinion SHAFTS
30CrMoV9 Forged Forging Steel Truck RING GEARS PLANET GEARS PINION SHAFTS
30CrMoV9 Forging Forge Steel Offshore subsea anchor winches Stub Shafts Spindles
30CrMoV9 Forged Forging Steel Seamless Hot rolled Truck concrete mixers semi-trailer bearings Rings
30CrMoV9 is a nitriding steel which has at least 2.3%Cr,0.15%Mo,0.1%V as strengthening alloy elements.
Due to its high wear resistance,it is mainly used in the automotive industry and general components mechanical engineering.
Steel making Process of 30CrMoV9 forging round bars
Electric arc furnace or blast furnace and oxygen blast converter shall be used, each with subsequent ladle treatment;
Steel shall be vacuum degassed;
Steel shall be non-radioactive;
Quality class shall beat least MQ in accordance with ISO 6336-5 or DIN 3990-5;
Standard EN 10083 shall be followed.
Chemical composition of 30CrMoV9,30 CrMoV 9,1.7707 forged parts
C 0.26 - 0.34
Si max 0.4
Mn 0.4 - 0.7
Ni max 0.6
P max 0.035
S max 0.035
Cr 2.3 - 2.7
Mo 0.15 - 0.25
V 0.1 - 0.2
FOllowing is heat treatment way of 30CrMoV9 forged parts
Soft Annealing
Heat to 650-720℃, cool slowly in the furnace. This will produce a maximum Brinell hardness of 248.
Hardening
Harden from a temperature of 870-930℃, followed by oil/polymer or water quenching.
Tempering
Tempering temperature: 580-700℃.
Nitriding
Gas/plasma nitriding temperature (gas, salt bath): 570-580℃
Gas/plasma nitriding temperature (powder, plasma): 580℃
Mechanical properties of the 30CrMoV9 forged Raw Material
Tensile strength, Rm: >800 MPa
The yield point, Rp0,2: >590 MPa
Elongation, A:> 8% I
mpact resistance, KV: > 20J
FOllowing is inspection standard of 30CrMoV9 forged material
ALl our finished forged 30CrMoV9 parts should be accepted by the QC department of the manufacturer by conducting the following
examinations:
1) external examination;
2) a check of dimensions and marking;
3) chemical composition examination;
4) mechanical tests;
5) macrostructure examination;
6) residual stress measurement;
7) ultrasonic testing;
8) periscopic testing.
ALl our finished producrtion of 30CrMoV9 forged round bars should have inspection certificate as per 3.1B of EN 10204 shall be provided to clients in triplicate;this certificate must contain the following dala:
(a)Material code no and P.O.number
(b)Material designation
(c)Heat no.,heat analysis and melting methods
(d)Table with the single results for determination pf the purity grade at microsections and value of purity grade K1
(e)Mechanical test results including hardness range
(f)Complete information on all heat treatments performed
(g)Results of NDT tests performed
(h)Confimation of material identification check
(i)Confirmation of dimensional and visual check
Welcome your inquiry of 30CrMoV9,30 CrMoV 9,1.7707 forging parts
