Description
Jiangsu Liangyi is professional manufacturer of 2.4617,NiMo28 open die forging parts and seamless rolled steel forged rings from china

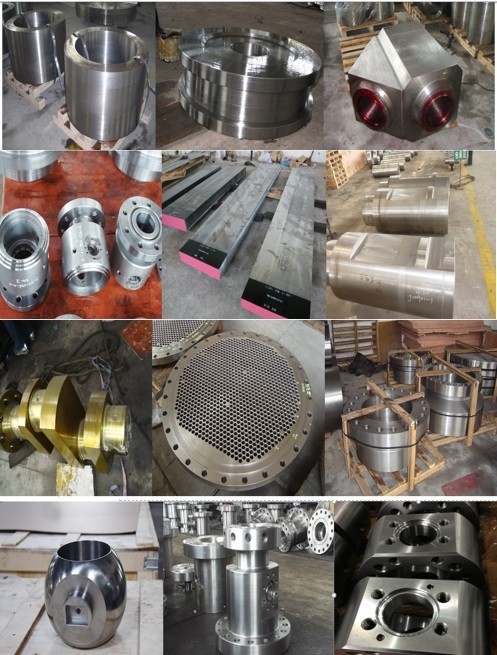

Following is the shape of 2.4617,NiMo28 forging steel material that we could do is:2.4617 Forged Steel round bars square bars Flat bars Rectangles Bars Rods,2.4617 Forged forging steel rings seamless rolled rings,NiMo28 Forged Forging Steel Hubs housing shell Sleeves Bushes Bushing Cases Hollow Bars,NiMo28 Forged Forging Steel Discs Disks Blocks plates,2.4617 Forged Forging Steel Pipe Tubes Tubings Piping Shells Casings Case barrels Housings.
Following is forging products of 2.4617,NiMo28 material that is used in following industry
2.4617 forging Forged Drilling Pipes Tubes Drill Rods drill Drilling collar
NiMo28 Forged Forging drilling tools,risers,connectors,flexible joint ,seals,flanges gasket
2.4617 Forged Forging Valve Balls,valve Bonnets,valve Body Bodies ,valve Stems,valve closures, valve seat rings, valve core, valve discs,for H type two way 2‐way one way back pressure valves, ball valve,check valve,gate valve
NiMo28 Forged Forging Steel nuclear Power reactor coolant pumps Rotor Impellers
2.4617 Forged Forging Steel Butterfly Valve Main Shafts Spindles
NiMo28 Forged Forging Swept branches outlets steel fittings swept saddles
2.4617 Forged Forging downhole drilling tool Mud Motor Splined Drive shafts,Down hole Electric electrical submersible pumps ESP motor Splined Shaft
2.4617 Forged Forging Gas Air Compressor Rotor
NiMo28 Forged Forging venturi cone meter Body Bodies Blocks
NiMo28 Forged Forging Steel gate valves Body Bodies bespoke flat bars
2.4617 forged steel Flowseal cryogenic High Performance BV Butterfly Valves HPBV shaft
2.4617 forging steel Oil measurement valve Spool Ultrasonic flow meter bodies Body
2.4617 Forged Forging Steel double studded adapter flange
2.4617 Forged Forging Steel integral Mud Flange Flanged outlet Studded crosses
NiMo28 Forged Forging Steel Casing Heads,Tubing Heads,Casing Hangers,Tubing Hangers,Tubing Spools,Casing Spools,Spacer Spools
2.4617 Forged Forgig Steel nuclear reactor coolant pump Casing Shells body bodis blocks,nuclear reactor coolant pumps containment seal chamber Rooms,nuclear reactor coolant pumps containment seal chamber Rooms
2.4617 Forged Forging turbomachinery turbo centrifugal compressor Impeller,Compressor Shrouded Impellers
2.4617 Forged Forging Steel Forged Single Double Bossed boss Blanks FLANGED BOSSES
2.4617 Forged Forging Steel PUMP Casing cover.PUMP BARREL,pump impeller,pump shafts, pump housing, pump shells,pump body,pump wear rings,pump case casing.
NiMo28 Forged Forging forge Steel transition Cone
NiMo28 Forged Forging Steel Pressure Vessel Reactor Nozzles
2.4617 Forging Steel Gas Steam Turbine MSV/GV/CV/CRV Valve Seats, Valve Cores, Valve Sleeves Spools,,Main Steam Valve Covers Bonnets Sleeves
2.4617 forged forging steel pipes tubes shells piping tubing barrels housing, tube sheets,baffle plates, nozzles, channel flanges for boiler, heat exchanger,pressure vessel,reactors, heaters
2.4617 is an corrosion resistant alloy (nickel-molydenum-mixed crystal) with an checked minimum content of iron and chrome
excellent resistance against reducing substances, also against various organic acids
good resistance against hydrochloric acid in a wide range of concentrations and temperatures
FOllowing is melting methods of 2.4617 forged parts
Material shall be produced by a triple melt process consisting of vacuum induction melting (VIM)followed by electroslag consumable electrode remelting (ESR)and vacuum arc consumable electrode remelting VAR).
FOllowing is chemical compostion of 2.4617 forged steel rings
Nickel (Ni) 64.8 to 74
Molybdenum (Mo) 26 to 30
Iron (Fe) 0 to 2.0
Manganese (Mn) 0 to 1.0
Chromium (Cr) 0 to 1.0
Cobalt (Co) 0 to 1.0
Silicon (Si) 0 to 0.1
Phosphorus (P) 0 to 0.040
Sulfur (S) 0 to 0.030
Carbon (C) 0 to 0.020
Following of 2.4617 forging parts heat treatment mechanical property Delivery condition :
Yield strength: > 350 MPa Tensile strength Rm: > 760 MPa Elongation: > 40 %
Following is inspection standard of 2.4617 forging material
ASTM E8 Tension Testing of Metallic Materials
ASTM E38 Chemical Analysis of Nickel-Chromium and Nickei-Chromium Iron Alloys
ASTM E112 Estimating the Average Grain Size of Metals
ASTM E139 Coaducting Creep,Creep-Rupture and Stress Rupture Tests oi Metaliic Materials
ASTM A370 mechanical Testing of Steel Products
All finished 2.4617 forging s are to be marked with supplier's symbol,material designation,melt number,and identification number qiven on the order.The details are to be clearly stamped and
encircled by oil paint.Each 2.4617 forged bar shall be painted with orange-orange-blue colour at one end.All the bars shall be suitably packed to protect them against corrosion and damage during transportation.Bars having maximum and minimum hardness (from which test samples are taken)shal be clearly marked by oil paint for easy identification.Their respective hardness values shall also be punched on these bars
ALl our finished producrtion of 2.4617 forged flat bars should have inspection certificate as per 3.1B of EN 10204 shall be provided to clients in triplicate;this certificate must contain the following dala:
(a)Material code no and P.O.number
(b)Material designation
(c)Heat no.,heat analysis and melting methods
(d)Table with the single results for determination pf the purity grade at microsections and value of purity grade K1
(e)Mechanical test results including hardness range
(f)Complete information on all heat treatments performed
(g)Results of NDT tests performed
(h)Confimation of material identification check
(i)Confirmation of dimensional and visual check
Welcome your inquiry of 2.4617,NiMo28 forging forged steel parts
